CTH10004 MB3

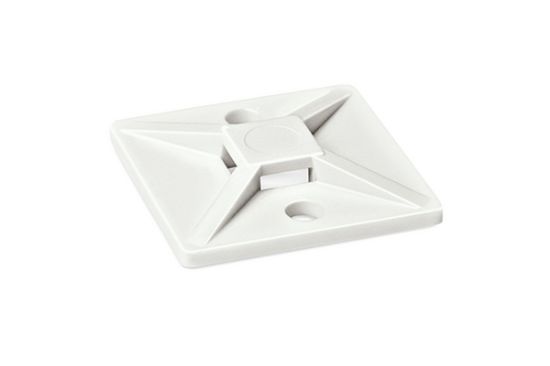

Screw Cable Tie Mounting Base, 4-Way Opening, Used with T18-T30 Series Cable Tie, 19mmx19.0mm(LxW), M3 Screw, PA66, -40 °C to +85 °C, Nature
Manufacturer: HellermannTyton
SKU: CTH10004
MPN: MB3-PA66-NA
Product Family: Screw Cable Tie Mount
Category: Cable Tie Mount
Unit Price: $0.1460
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
1250 + $0.1460
1750 + $0.1417
2500 + $0.1371
4000 + $0.1310
6000 + $0.1257
8000 + $0.1220
12000 + $0.1168
This product has a minimum quantity of 1250
Total Price: $0.1460
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from Agriculture to Truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 8mm wide.

Features

  • Screwable or self-adhesive versions
  • Simple to install with a screw or bolt
  • Excellent security, particularly in areas of high vibration
  • Maximum surface area with adhesive to achieve high pull-off force
  • 4-way entry for cable tie for quicker and more flexible installation
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Screw Cable Tie Mount
Global Part Number MB3-PA66-NA
Product Base Type MB3
Material Abbreviation PA66
Color Nature
Lead Time 8 Weeks
Width (Metric) 19 mm
Width (Imperial) 0.75 inch
Length (Metric) 19 mm
Length (Imperial) 0.7 inch
Mounting Type Screw Mount
Mounting Screw Type M3 Screw
Material Polyamide 6.6 (PA66)
Flammability UL 94-V2
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications ANSI/UL 1565, ANSI/UL 62275
ELV compliant Yes
ROHS compliant Yes
UL-File Number E64962
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 151-00560 MB3-PA66-NA Catalogue PageHT_Product_Cat_2022_1_12_166-166_COM.pdfCatalogue

Drawing

HellermannTyton 151-00560 MB3-PA66-NA Drawing PDFCAD_16-0338-001-CSU.pdfDrawing

Datasheet

HellermannTyton 151-00560 MB3-PA66-NA Datasheet PDFTDS_151-00560_com.pdfDatasheet
