151-02502 MP1M5

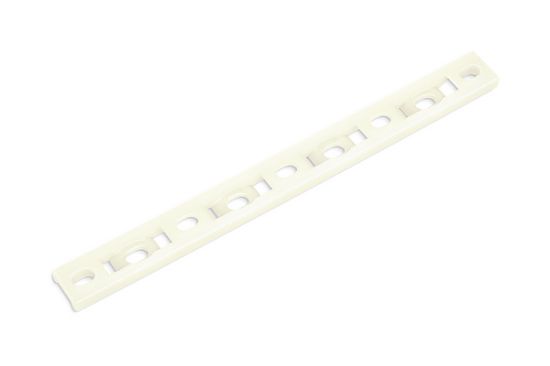

Multiple Cable Tie Mounting Plates, 44.4mmx12.7mm(LxW), M5 Screw, PA66, -40 °C to +85 °C, Nature
Manufacturer: HellermannTyton
SKU: 151-02502
MPN: MP1M5-PA66-NA
Product Family: Screw Cable Tie Mount
Category: Cable Tie Mount
Unit Price: $0.5173
Availability: Out of stock - on backorder and will be dispatched once in stock (2 weeks).
Price list
Quantity Net Price /Piece
1500 + $0.5173
2000 + $0.4991
2500 + $0.4849
3500 + $0.4636
4500 + $0.4476
6000 + $0.4294
This product has a minimum quantity of 1500
Total Price: $0.5173
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Many applications require each cable run to be firmly held in place but to be held separately from adjacent cable runs (example - control cabinets, machinery and military systems). The MP series of mounts can achieve this.

Features

  • Allow multiple cables to run in parallel
  • Simple to fix with two screws
  • Cables are fixed by using a cable tie through any combination of the available slots
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Screw Cable Tie Mount
Global Part Number MP1M5-PA66-NA
Product Base Type MP1M5
Material Abbreviation PA66
Color Nature
Lead Time 5 Weeks
Width (Metric) 12.7 mm
Width (Imperial) 0.50 inch
Length (Metric) 44.4 mm
Length (Imperial) 1.7 inch
Mounting Type Screw Mount
Mounting Screw Type M5 Screw
Material Polyamide 6.6 (PA66)
Flammability UL 94-V2
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 151-02502 MP1M5-PA66-NA Drawing PDFCAD_14_1597-CSC.pdfDrawing

Datasheet

HellermannTyton 151-02502 MP1M5-PA66-NA Datasheet PDFTDS_151-02502_com.pdfDatasheet
