151-02504 MP3M5

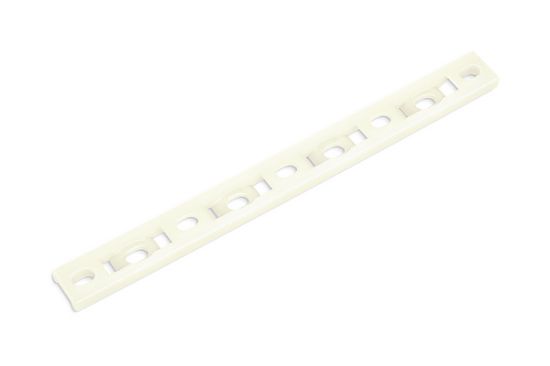

Multiple Cable Tie Mounting Plates, 108mmx12.7mm(LxW), M5 Screw, PA66, -40 °C to +85 °C, Nature
Manufacturer: HellermannTyton
SKU: 151-02504
MPN: MP3M5-PA66-NA
Product Family: Screw Cable Tie Mount
Category: Cable Tie Mount
Unit Price: $0.6132
Availability: Out of stock - on backorder and will be dispatched once in stock (2 weeks).
Price list
Quantity Net Price /Piece
700 + $0.6132
1000 + $0.5877
1250 + $0.5717
1750 + $0.5476
3000 + $0.5090
This product has a minimum quantity of 700
Total Price: $0.6132
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Many applications require each cable run to be firmly held in place but to be held separately from adjacent cable runs (example - control cabinets, machinery and military systems). The MP series of mounts can achieve this.

Features

  • Allow multiple cables to run in parallel
  • Simple to fix with two screws
  • Cables are fixed by using a cable tie through any combination of the available slots
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Screw Cable Tie Mount
Global Part Number MP3M5-PA66-NA
Product Base Type MP3M5
Material Abbreviation PA66
Color Nature
Lead Time 5 Weeks
Cable Tie Length (Metric) 108 mm
Cable Tie Length (Imperial) 4.3 inch
Width (Metric) 12.7 mm
Width (Imperial) 0.50 inch
Mounting Type Screw Mount
Mounting Screw Type M5 Screw
Material Polyamide 6.6 (PA66)
Flammability UL 94-V2
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 151-02504 MP3M5-PA66-NA Drawing PDFCAD_14_1597-CSC.pdfDrawing

Datasheet

HellermannTyton 151-02504 MP3M5-PA66-NA Datasheet PDFTDS_151-02504_com.pdfDatasheet
