157-00235 T50SOS2DOP62X122-E

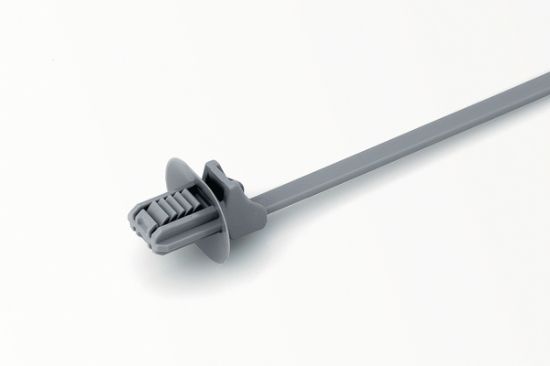

Cable Tie With Fir Tree Mount, 164mmx4.6mm(LxW), For 6.2x12.2mm Hole, Bundle Max. Φ35 mm, 200N Tensile Strength, PA46, -40 °C to +130 °C, Grey
Manufacturer: HellermannTyton
SKU: 157-00235
MPN: T50SOS2DOP62X122-E-PA46-GY
Product Family: Fir Tree Cable Tie For Oval Hole
Unit Price: $0.2747
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
800 + $0.2747
1250 + $0.2665
2000 + $0.2578
3000 + $0.2504
5000 + $0.2410
7500 + $0.2335
This product has a minimum quantity of 800
Total Price: $0.2747
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
  • Versions for oval holes feature anti-twist protection
Products specifications
Attribute name Attribute value
Country of Origin SG
Product Family Fir Tree Cable Tie For Oval Hole
Global Part Number T50SOS2DOP62X122-E-PA46-GY
Product Base Type T50SOS2DOP62X122-E
Material Abbreviation PA46
Color Grey
Lead Time 16 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 164 mm
Cable Tie Length (Imperial) 6.5 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.3 mm
Max. Bundle Diameter Φ35 mm
Min. Tensile Strength (Metric) 200N
Min. Tensile Strength (Imperial) 45 Lbs (20.4 Kgf)
Mounting Type Fir Tree Mount
Fixing Hole Shape Oval Hole
Fitting Hole Diameter 6.2x12.2mm
Fitting Panel Thickness 0.6-6.0 mm
Material Polyamide 4.6 (PA46)
Flammability UL 94-V2
Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 157-00235 T50SOS2DOP62X122-E-PA46-GY Catalogue PageHT_Automotive_Cat_2024_1_6_114-114_COM.pdfCatalogue

Drawing

HellermannTyton 157-00235 T50SOS2DOP62X122-E-PA46-GY Drawing PDFCAD_05-0052-001-CSH.pdfDrawing

Datasheet

HellermannTyton 157-00235 T50SOS2DOP62X122-E-PA46-GY Datasheet PDFTDS_157-00235_com.pdfDatasheet
