126-00229 T50SOS3DOP65X130-E

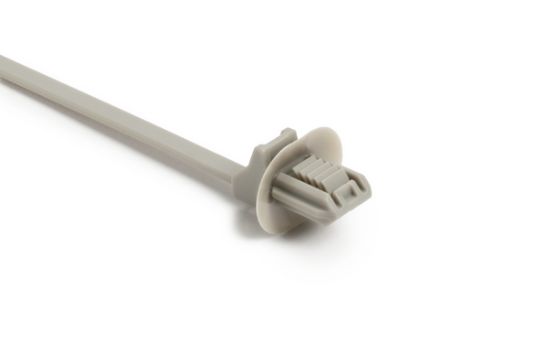

Cable Tie With Fir Tree Mount, 165mmx4.6mm(LxW), For 6.5x13.0mm Hole, Bundle Max. Φ35 mm, 180N Tensile Strength, PA46, -40 °C to +130 °C, Grey
Manufacturer: HellermannTyton
SKU: 126-00229
MPN: T50SOS3DOP65X130-E-PA46-GY
Product Family: Fir Tree Cable Tie For Oval Hole
Unit Price: $0.3650
Availability: 3000 in stock
Price list
Quantity Net Price /Piece
500 + $0.3650
750 + $0.3521
1000 + $0.3430
1500 + $0.3302
2500 + $0.3140
3500 + $0.3033
5000 + $0.2920
This product has a minimum quantity of 500
Total Price: $0.3650
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
  • Versions for oval holes feature anti-twist protection
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Fir Tree Cable Tie For Oval Hole
Global Part Number T50SOS3DOP65X130-E-PA46-GY
Product Base Type T50SOS3DOP65X130-E
Material Abbreviation PA46
Color Grey
Lead Time 5 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 165 mm
Cable Tie Length (Imperial) 6.5 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.3 mm
Max. Bundle Diameter Φ35 mm
Min. Tensile Strength (Metric) 180N
Min. Tensile Strength (Imperial) 40.5 Lbs (18.4 Kgf)
Mounting Type Fir Tree Mount
Fixing Hole Shape Oval Hole
Fitting Hole Diameter 6.5x13.0mm
Fitting Panel Thickness 0.7-5.0 mm
Material Polyamide 4.6 (PA46)
Flammability UL 94-V2
Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 126-00229 T50SOS3DOP65X130-E-PA46-GY Catalogue PageHT_Automotive_Products_085-086_COM.pdfCatalogue

Drawing

HellermannTyton 126-00229 T50SOS3DOP65X130-E-PA46-GY Drawing PDFCAD_06-0188-000-CSC.pdfDrawing

Datasheet

HellermannTyton 126-00229 T50SOS3DOP65X130-E-PA46-GY Datasheet PDFTDS_126-00229_com.pdfDatasheet
