157-00383 T50ROSFTOVALU

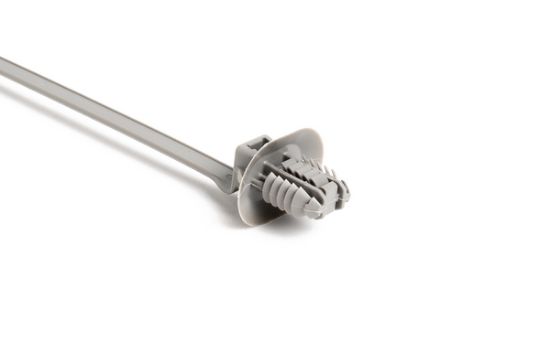

Cable Tie With Fir Tree Mount, 219mmx5.1mm(LxW), For 6.2x12.2mm, 6.5x12.5mm, 6.5x13.0mm, 7.0x12.0mm Hole, Bundle Max. Φ50 mm, 225N Tensile Strength, PA66HS, -40 °C to +105 °C, Grey
Manufacturer: HellermannTyton
SKU: 157-00383
MPN: T50ROSFTOVALU-PA66HS-GY
Product Family: Fir Tree Cable Tie For Oval Hole
Unit Price: $0.0999
Availability: 6000 in stock
Price list
Quantity Net Price /Piece
1000 + $0.0999
4500 + $0.0959
20000 + $0.0919
This product has a minimum quantity of 1000
Total Price: $0.0999
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
  • Versions for oval holes feature anti-twist protection
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Fir Tree Cable Tie For Oval Hole
Global Part Number T50ROSFTOVALU-PA66HS-GY
Product Base Type T50ROSFTOVALU
Material Abbreviation PA66HS
Color Grey
Lead Time 5 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 219 mm
Cable Tie Length (Imperial) 8.6 inch
Cable Tie Width (Metric) 5.1 mm
Cable Tie Width (Imperial) 0.20 inch
Max. Bundle Diameter Φ50 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Mounting Type Fir Tree Mount
Fixing Hole Shape Oval Hole
Fitting Hole Diameter 6.2x12.2mm, 6.5x12.5mm, 6.5x13.0mm, 7.0x12.0mm
Fitting Panel Thickness 0.6-6.8 mm
Material Polyamide 6.6, heat stabilised (PA66HS)
Flammability UL 94-V2
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 157-00383 T50ROSFTOVALU-PA66HS-GY Drawing PDFCAD_11-0345-011-CSC.pdfDrawing

Datasheet

HellermannTyton 157-00383 T50ROSFTOVALU-PA66HS-GY Datasheet PDFTDS_157-00383_com.pdfDatasheet
