157-00245 T50ROSFTOVALU

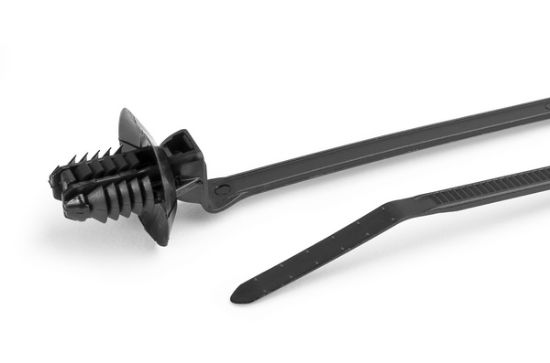

Cable Tie With Fir Tree Mount, 219mmx5.1mm(LxW), For 6.2x12.2mm, 6.5x12.5mm, 6.5x13.0mm, 7.0x12.0mm Hole, Bundle Max. Φ50 mm, 225N Tensile Strength, PA66HIRHSUV, -40 °C to +110 °C, Black
Manufacturer: HellermannTyton
SKU: 157-00245
MPN: T50ROSFTOVALU-PA66HIRHSUV-BK
Product Family: Fir Tree Cable Tie For Oval Hole
Unit Price: $0.0999
Availability: 1250 in stock
Price list
Quantity Net Price /Piece
500 + $0.0999
1000 + $0.0967
2000 + $0.0935
4500 + $0.0898
10000 + $0.0861
20000 + $0.0829
This product has a minimum quantity of 500
Total Price: $0.0999
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Primarily designed for fixing cable harnesses in the automotive industry their simplicity, and ease of use, has seen these parts used in everything from aircraft, to switch-gear, to washing machines.

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Disc adjusts tie for pressure from various directions and minimises access of dust and dirt
  • Fir tree foot part can be used for a variety of panel thicknesses
  • Suitable for use within threaded holes
  • Versions for oval holes feature anti-twist protection
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Fir Tree Cable Tie For Oval Hole
Global Part Number T50ROSFTOVALU-PA66HIRHSUV-BK
Product Base Type T50ROSFTOVALU
Material Abbreviation PA66HIRHSUV
Color Black
Lead Time 5 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 219 mm
Cable Tie Length (Imperial) 8.6 inch
Cable Tie Width (Metric) 5.1 mm
Cable Tie Width (Imperial) 0.20 inch
Max. Bundle Diameter Φ50 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Mounting Type Fir Tree Mount
Fixing Hole Shape Oval Hole
Fitting Hole Diameter 6.2x12.2mm, 6.5x12.5mm, 6.5x13.0mm, 7.0x12.0mm
Fitting Panel Thickness 0.6-6.8 mm
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Flammability UL 94-HB
UV Resistance Yes
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 157-00245 T50ROSFTOVALU-PA66HIRHSUV-BK Catalogue PageHT_Automotive_Cat_2024_1_6_114-114_COM.pdfCatalogue

Drawing

HellermannTyton 157-00245 T50ROSFTOVALU-PA66HIRHSUV-BK Drawing PDFCAD_11-0345-011-CSC.pdfDrawing

Datasheet

HellermannTyton 157-00245 T50ROSFTOVALU-PA66HIRHSUV-BK Datasheet PDFTDS_157-00245_com.pdfDatasheet
