156-03199 X120RDHDM6-2

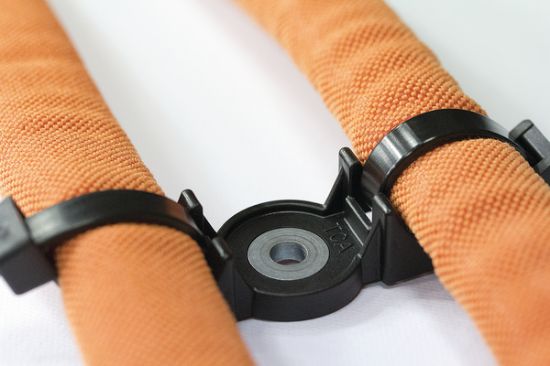

Cable Tie With Heavy Duty Screw Mount, 369mmx7.7mm(LxW), M6 Screw, For 6.2mm Hole, 535N Tensile Strength, PA66HS/PA66HIRHS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 156-03199
MPN: X120RDHDM6-2-PA66HIRHS-BK
Product Family: Heavy Duty Screw Mount Tie (M6)
Unit Price: $3.8447
Availability: Out of stock - on backorder and will be dispatched once in stock (2 weeks).
Price list
Quantity Net Price /Piece
50 + $3.8447
75 + $3.6619
100 + $3.5322
150 + $3.3494
200 + $3.2197
250 + $3.1191
300 + $3.0369
400 + $2.9072
500 + $2.8066
This product has a minimum quantity of 50
Total Price: $3.8447
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Used in the automotive and truck industry for harness fixing in the engine body, these parts offer solutions in many other industrial applications with difficult environment.

Features

  • Pre-assembled 2-piece fixing tie
  • Cable tie head can be moved after bundling
  • Secure alignment to the bundle due to H-design
  • A suitable alternative for metal clamps
  • Withstands vibrations and displacement forces
  • High tightening torque through metal bushing
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Heavy Duty Screw Mount Tie (M6)
Global Part Number X120RDHDM6-2-PA66HS/PA66HIRHS-BK
Product Base Type X120RDHDM6
Material Abbreviation PA66HS/PA66HIRHS
Color Black
Lead Time 5 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 369 mm
Cable Tie Length (Imperial) 14.5 inch
Cable Tie Width (Metric) 7.7 mm
Cable Tie Width (Imperial) 0.30 inch
Tie Strap Thickness 1.6 mm
Min. Tensile Strength (Metric) 535N
Min. Tensile Strength (Imperial) 120 Lbs (54.6 Kgf)
Mounting Type Screw/Stud Mount With Metal Inlay
Mounting Screw Type M6 Screw
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability UL 94-V2 (Foot Part: UL 94-HB)
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 156-03199 X120RDHDM6-2-PA66HS/PA66HIRHS-BK Catalogue PageHT_Product_Cat_2022_1_12_164-164_COM.pdfCatalogue

Drawing

HellermannTyton 156-03199 X120RDHDM6-2-PA66HS/PA66HIRHS-BK Drawing PDF13-0283-001-CSF.pdfDrawing
