156-02601 X120RHDML6

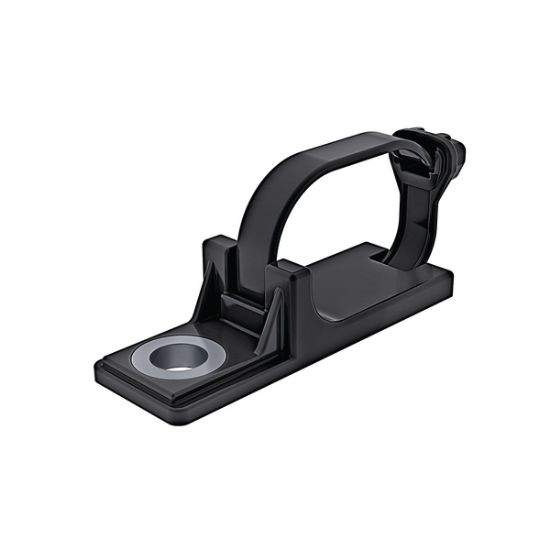

Cable Tie With Heavy Duty Screw Mount, 369mmx7.7mm(LxW), M6 Screw, Bundle Max. Φ100 mm, 535N Tensile Strength, PA66HS/PA6GF15, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 156-02601
MPN: X120RHDML6-PA66HS/PA6GF15-BK
Product Family: Heavy Duty Screw Mount Tie (M6)
Unit Price: $1.7520
Availability: Out of stock - on backorder and will be dispatched once in stock (2 weeks).
Price list
Quantity Net Price /Piece
200 + $1.7520
250 + $1.6956
300 + $1.6495
400 + $1.5768
500 + $1.5204
750 + $1.4179
800 + $1.4016
This product has a minimum quantity of 200
Total Price: $1.7520
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Used in the automotive and truck industry for harness fixing in the engine body, these parts offer solutions in many other industrial applications with difficult environment.

Features

  • Pre-assembled 2-piece fixing tie
  • Cable tie head can be moved after bundling
  • Secure alignment to the bundle due to H-design
  • A suitable alternative for metal clamps
  • Withstands vibrations and displacement forces
  • High tightening torque through metal bushing
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Heavy Duty Screw Mount Tie (M6)
Global Part Number X120RHDML6-PA66HS/PA6GF15-BK
Product Base Type X120RHDML6
Material Abbreviation PA66HS/PA6GF15
Color Black
Lead Time 5 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 369 mm
Cable Tie Length (Imperial) 14.5 inch
Cable Tie Width (Metric) 7.7 mm
Cable Tie Width (Imperial) 0.30 inch
Tie Strap Thickness 1.6 mm
Max. Bundle Diameter Φ100 mm
Min. Tensile Strength (Metric) 535N
Min. Tensile Strength (Imperial) 120 Lbs (54.6 Kgf)
Mounting Type Screw/Stud Mount With Metal Inlay
Mounting Screw Type M6 Screw
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6, glass-fibre reinforced (PA6GF15)
Flammability UL 94-V2 (Foot Part: UL 94-HB)
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 156-02601 X120RHDML6-PA66HS/PA6GF15-BK Drawing PDFCAD_11-0622-001-CSC.pdfDrawing

Datasheet

HellermannTyton 156-02601 X120RHDML6-PA66HS/PA6GF15-BK Datasheet PDFTDS_156-02601_com.pdfDatasheet
