156-02740 X120SDHDM6-2

Name: 156-02740 X120SDHDM6-2
SKU: 156-02740
Price: 2.10 USD
Availability: InStock

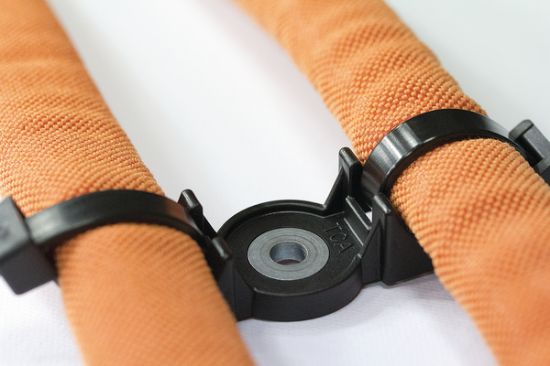

Cable Tie With Heavy Duty Screw Mount, 225mmx7.7mm(LxW), M6 Screw, Bundle Max. Φ55 mm, 535N Tensile Strength, PA66HIRHS, -40 °C to +105 °C, Black

Manufacturer: HellermannTyton

SKU: 156-02740

MPN: X120SDHDM6-2-PA66HIRHS-BK

Product Family: Heavy Duty Screw Mount Tie (M6)

Category: Heavy Duty Stud Mount Tie

CAD_19-0564-001-CSC.pdfDrawing

Unit Price: $2.0971

Availability: 2400 in stock

Price list

Quantity	Net Price /Piece
100 +	$2.0971
150 +	$1.9867
200 +	$1.9084
250 +	$1.8476
300 +	$1.7980
400 +	$1.7196
500 +	$1.6589
750 +	$1.5485
800 +	$1.5309
1000 +	$1.4701

This product has a minimum quantity of 100

Qty:

Total Price: $2.0971

Request a free, non-obligation quote today

Create your individual quote quickly and easily

Full Description

Used in the automotive and truck industry for harness fixing in the engine body, these parts offer solutions in many other industrial applications with difficult environment.

Features

Pre-assembled 2-piece fixing tie
Cable tie head can be moved after bundling
Secure alignment to the bundle due to H-design
A suitable alternative for metal clamps
Withstands vibrations and displacement forces
High tightening torque through metal bushing

Products specifications

Attribute name	Attribute value
Country of Origin	CN
Product Family	Heavy Duty Screw Mount Tie (M6)
Global Part Number	X120SDHDM6-2-PA66HIRHS-BK
Product Base Type	X120SDHDM6-2
Material Abbreviation	PA66HIRHS
Color	Black
Lead Time	5 Weeks
Cable Tie Style	2-Piece Fixing Tie
Tie Closure	Plastic Pawl
Variant	Inside Serrated
Cable Tie Length (Metric)	225 mm
Cable Tie Length (Imperial)	8.9 inch
Cable Tie Width (Metric)	7.7 mm
Cable Tie Width (Imperial)	0.30 inch
Max. Bundle Diameter	Φ55 mm
Min. Tensile Strength (Metric)	535N
Min. Tensile Strength (Imperial)	120 Lbs (54.6 Kgf)
Mounting Type	Screw/Stud Mount With Metal Inlay
Mounting Screw Type	M6 Screw
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability	UL 94-HB
Operating Temperature	-40 °C to +105 °C
ELV compliant	Yes
ROHS compliant	Yes
Manufacturer	HellermannTyton
Product Unit	Piece
Drawing	CAD_19-0564-001-CSC.pdfDrawing
