156-02778 X120SHDML6

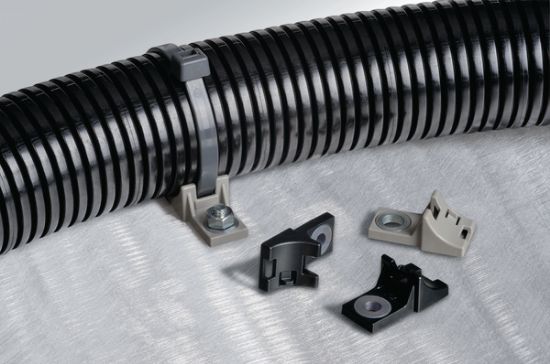

Cable Tie With Heavy Duty Screw Mount, 225mmx7.7mm(LxW), M6 Screw, Bundle Max. Φ55 mm, 535N Tensile Strength, PA66HIRHS/PA6GF15, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 156-02778
MPN: X120SHDML6-PA66HIRHS/PA6GF15-BK
Product Family: Heavy Duty Screw Mount Tie (M6)
Unit Price: $1.8250
Availability: Out of stock - on backorder and will be dispatched once in stock (2 weeks).
Price list
Quantity Net Price /Piece
250 + $1.8250
300 + $1.7837
400 + $1.7184
500 + $1.6678
750 + $1.5758
1000 + $1.5106
1250 + $1.4600
This product has a minimum quantity of 250
Total Price: $1.8250
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Used in the automotive and truck industry for harness fixing in the engine body, these parts offer solutions in many other industrial applications with difficult environment.

Features

  • Pre-assembled 2-piece fixing tie
  • Cable tie head can be moved after bundling
  • Secure alignment to the bundle due to H-design
  • A suitable alternative for metal clamps
  • Withstands vibrations and displacement forces
  • High tightening torque through metal bushing
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Heavy Duty Screw Mount Tie (M6)
Global Part Number X120SHDML6-PA66HIRHS/PA6GF15-BK
Product Base Type X120SHDML6
Material Abbreviation PA66HIRHS/PA6GF15
Color Black
Lead Time 5 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 225 mm
Cable Tie Length (Imperial) 8.9 inch
Cable Tie Width (Metric) 7.7 mm
Cable Tie Width (Imperial) 0.30 inch
Max. Bundle Diameter Φ55 mm
Min. Tensile Strength (Metric) 535N
Min. Tensile Strength (Imperial) 120 Lbs (54.6 Kgf)
Mounting Type Screw/Stud Mount With Metal Inlay
Mounting Screw Type M6 Screw
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6, glass-fibre reinforced (PA6GF15)
Flammability UL 94-HB
Operating Temperature -40 °C to +105 °C
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 156-02778 X120SHDML6-PA66HIRHS/PA6GF15-BK Drawing PDFCAD_11-0622-002-CSC.pdfDrawing

Datasheet

HellermannTyton 156-02778 X120SHDML6-PA66HIRHS/PA6GF15-BK Datasheet PDFTDS_156-02778_com.pdfDatasheet
