156-01105 X120RHDML6

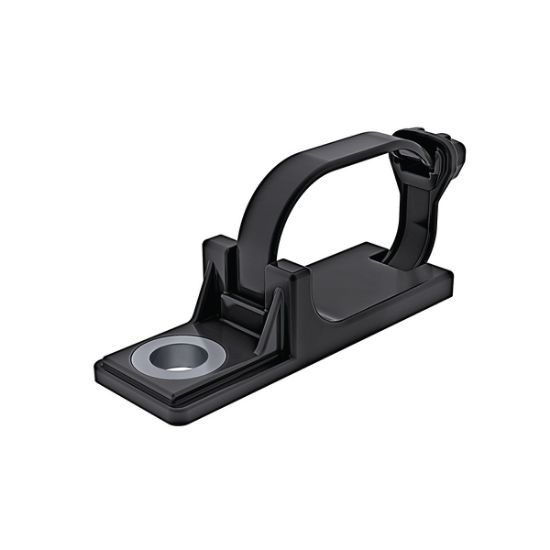

Cable Tie With Heavy Duty Screw Mount, 369mmx7.7mm(LxW), M6 Screw, Bundle Max. Φ100 mm, 535N Tensile Strength, PA66HIRHS/PA6GF15, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 156-01105
MPN: X120RHDML6-PA66HIRHS/PA6GF15-BK
Product Family: Heavy Duty Screw Mount Tie (M6)
Unit Price: $1.0950
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
200 + $1.0950
300 + $1.0523
400 + $1.0220
500 + $0.9985
750 + $0.9558
1250 + $0.9020
1600 + $0.8760
This product has a minimum quantity of 200
Total Price: $1.0950
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Used in the automotive and truck industry for harness fixing in the engine body, these parts offer solutions in many other industrial applications with difficult environment.

Features

  • Pre-assembled 2-piece fixing tie
  • Cable tie head can be moved after bundling
  • Secure alignment to the bundle due to H-design
  • A suitable alternative for metal clamps
  • Withstands vibrations and displacement forces
  • High tightening torque through metal bushing
Products specifications
Attribute name Attribute value
Country of Origin FR
Product Family Heavy Duty Screw Mount Tie (M6)
Global Part Number X120RHDML6-PA66HIRHS/PA6GF15-BK
Product Base Type X120RHDML6
Material Abbreviation PA66HIRHS/PA6GF15
Color Black
Lead Time 16 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 369 mm
Cable Tie Length (Imperial) 14.5 inch
Cable Tie Width (Metric) 7.7 mm
Cable Tie Width (Imperial) 0.30 inch
Tie Strap Thickness 1.6 mm
Max. Bundle Diameter Φ100 mm
Min. Tensile Strength (Metric) 535N
Min. Tensile Strength (Imperial) 120 Lbs (54.6 Kgf)
Mounting Type Screw/Stud Mount With Metal Inlay
Mounting Screw Type M6 Screw
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6, glass-fibre reinforced (PA6GF15)
Flammability UL 94-HB
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 156-01105 X120RHDML6-PA66HIRHS/PA6GF15-BK Drawing PDFCAD_11-0622-001-CSC.pdfDrawing

Datasheet

HellermannTyton 156-01105 X120RHDML6-PA66HIRHS/PA6GF15-BK Datasheet PDFTDS_156-01105_com.pdfDatasheet
