156-00744 T30RSB5

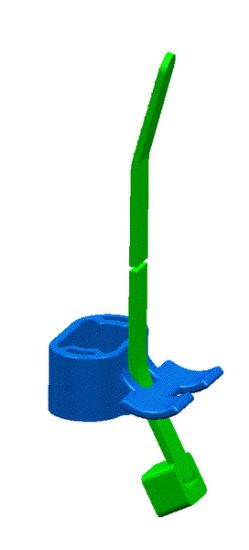

Cable Tie With Stud Mount, 150mmx3.5mm(LxW), M5, Bundle Max. Φ32 mm, 135N Tensile Strength, PA66HS/POM, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
Unit Price: $0.2044
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
800 + $0.2044
1250 + $0.1977
2000 + $0.1906
3000 + $0.1844
5000 + $0.1767
7500 + $0.1706
12000 + $0.1635
This product has a minimum quantity of 800
Total Price: $0.2044
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured

Features

  • Pre-assembled 2-piece fixing tie with stud retainer
  • Cable tie head can be moved after bundling
  • Easy to install without the need for a tool
  • SB5-types for 5 mm studs or 5 mm ISO threaded studs
  • Types with disc can retain insulation materials while fixing a cable bundle
  • Oval shape can be adjusted in a lateral position
Products specifications
Attribute name Attribute value
Country of Origin BR
Product Family Stud Mount Cable Tie
Global Part Number T30RSB5-PA66HS/POM-BK
Product Base Type T30RSB5
Material Abbreviation PA66HS/POM
Color Black
Lead Time 16 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 150 mm
Cable Tie Length (Imperial) 5.9 inch
Cable Tie Width (Metric) 3.5 mm
Cable Tie Width (Imperial) 0.14 inch
Tie Strap Thickness 1.1 mm
Max. Bundle Diameter Φ32 mm
Min. Tensile Strength (Metric) 135N
Min. Tensile Strength (Imperial) 30 Lbs (13.8 Kgf)
Mounting Type Weld Stud Mount
Fitting Stud Diameter M5
Material Polyamide 6.6, heat stabilised (PA66HS), Polyacetal (POM)
Flammability UL 94-V2 (Foot Part: UL 94-HB)
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 156-00744 T30RSB5-PA66HS/POM-BK Catalogue PageHT_Automotive_Products_097-097_COM.pdfCatalogue

Drawing

HellermannTyton 156-00744 T30RSB5-PA66HS/POM-BK Drawing PDFCAD_141197.pdfDrawing

Datasheet

HellermannTyton 156-00744 T30RSB5-PA66HS/POM-BK Datasheet PDFTDS_156-00744_com.pdfDatasheet
