157-00207 T50SSBS5OT-E

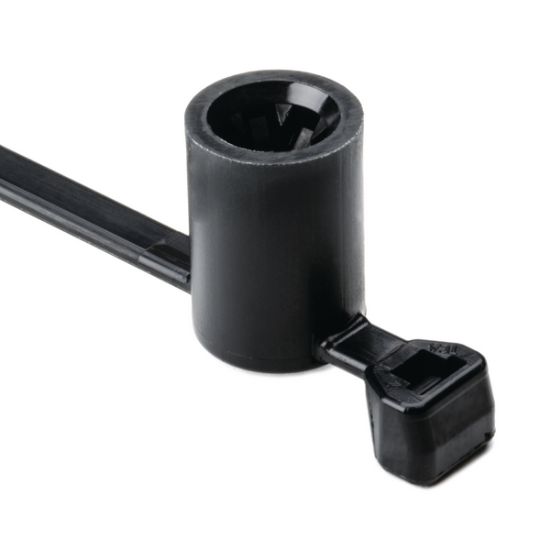

Cable Tie With Stud Mount, 160mmx4.6mm(LxW), M5, Bundle Max. Φ35 mm, 200N Tensile Strength, PA66HS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
Unit Price: $0.1738
Availability: 90000 in stock
Price list
Quantity Net Price /Piece
600 + $0.1738
1000 + $0.1679
1750 + $0.1614
2500 + $0.1572
4500 + $0.1504
7500 + $0.1445
12000 + $0.1390
This product has a minimum quantity of 600
Total Price: $0.1738
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.

Features

  • Cable tie head always situated in defined position
  • Easy to assemble without the need for a tool
  • Bundle runs directly above weld stud with defined stand-off from the panel
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Stud Mount Cable Tie
Global Part Number T50SSBS5OT-E-PA66HS-BK
Product Base Type T50SSBS5OT-E
Material Abbreviation PA66HS
Color Black
Lead Time 5 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 160 mm
Cable Tie Length (Imperial) 6.3 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.35 mm
Max. Bundle Diameter Φ35 mm
Min. Tensile Strength (Metric) 200N
Min. Tensile Strength (Imperial) 45 Lbs (20.4 Kgf)
Mounting Type Weld Stud Mount
Fitting Stud Diameter M5
Material Polyamide 6.6, heat stabilised (PA66HS)
Flammability UL 94-V2
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 157-00207 T50SSBS5OT-E-PA66HS-BK Catalogue PageHT_Product_Cat_2022_1_11_156-156_COM.pdfCatalogue

Drawing

HellermannTyton 157-00207 T50SSBS5OT-E-PA66HS-BK Drawing PDFCAD_02-0306-005-CSU.pdfDrawing

Datasheet

HellermannTyton 157-00207 T50SSBS5OT-E-PA66HS-BK Datasheet PDFTDS_157-00207_com.pdfDatasheet
