157-00209 T50SOSWSP5E

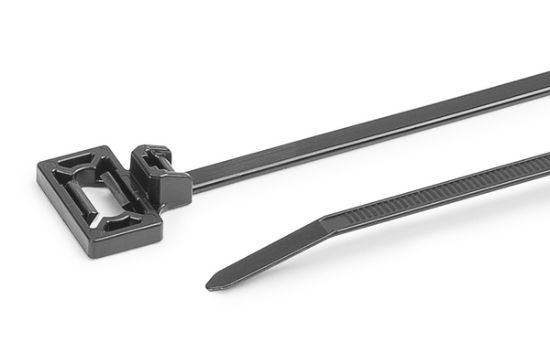

Cable Tie With Stud Mount, 163mmx4.6mm(LxW), M5, Bundle Max. Φ35 mm, 200N Tensile Strength, PA66HS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
Unit Price: $0.1389
Availability: 30000 in stock
Price list
Quantity Net Price /Piece
750 + $0.1389
1250 + $0.1342
2000 + $0.1298
3500 + $0.1246
6000 + $0.1196
9000 + $0.1158
15000 + $0.1111
This product has a minimum quantity of 750
Total Price: $0.1389
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.

Features

  • Cable tie head always situated in defined position
  • Easy to install without the need for a tool
  • Provides a 5 – 6 mm lateral adjustment possibility
  • Very low profile, stackable design
  • For bundles which need to be routed in different directions
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Stud Mount Cable Tie
Global Part Number T50SOSWSP5E-PA66HS-BK
Product Base Type T50SOSWSP5E
Material Abbreviation PA66HS
Color Black
Lead Time 5 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 163 mm
Cable Tie Length (Imperial) 6.4 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.35 mm
Max. Bundle Diameter Φ35 mm
Min. Tensile Strength (Metric) 200N
Min. Tensile Strength (Imperial) 45 Lbs (20.4 Kgf)
Mounting Type Weld Stud Mount
Fitting Stud Diameter M5
Material Polyamide 6.6, heat stabilised (PA66HS)
Flammability UL 94-V2
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 157-00209 T50SOSWSP5E-PA66HS-BK Catalogue PageHT_Automotive_Cat_2024_1_11_203-203_COM.pdfCatalogue

Drawing

HellermannTyton 157-00209 T50SOSWSP5E-PA66HS-BK Drawing PDFCAD_141610.pdfDrawing

Datasheet

HellermannTyton 157-00209 T50SOSWSP5E-PA66HS-BK Datasheet PDFTDS_157-00209_com.pdfDatasheet
