156-00410 T50RHDM6

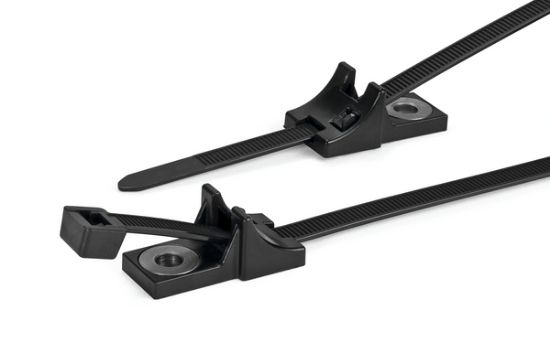

Cable Tie With Heavy Duty Screw Mount, 200mmx4.6mm(LxW), M6 Screw, Bundle Max. Φ50 mm, 225N Tensile Strength, PA66HIRHS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 156-00410
MPN: T50RHDM6-PA66HIRHS-BK
Product Family: Heavy Duty Screw Mount Tie (M6)
Unit Price: $1.3870
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
100 + $1.3870
150 + $1.3495
250 + $1.3022
400 + $1.2586
750 + $1.2004
1250 + $1.1531
2000 + $1.1096
This product has a minimum quantity of 100
Total Price: $1.3870
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Used in the automotive and truck industry for harness fixing in the engine body, these parts offer solutions in many other industrial applications with difficult environment.

Features

  • Pre-assembled 2-piece fixing tie
  • Cable tie head can be moved after bundling
  • Secure alignment to the bundle due to H-design
  • A suitable alternative for metal clamps
  • Withstands vibrations and displacement forces
  • High tightening torque through metal bushing
Products specifications
Attribute name Attribute value
Country of Origin FR
Product Family Heavy Duty Screw Mount Tie (M6)
Global Part Number T50RHDM6-PA66HIRHS-BK
Product Base Type T50RHDM6
Material Abbreviation PA66HIRHS
Color Black
Lead Time 16 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 200 mm
Cable Tie Length (Imperial) 7.9 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.2 mm
Max. Bundle Diameter Φ50 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Mounting Type Screw/Stud Mount With Metal Inlay
Mounting Screw Type M6 Screw
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability UL 94-HB
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
