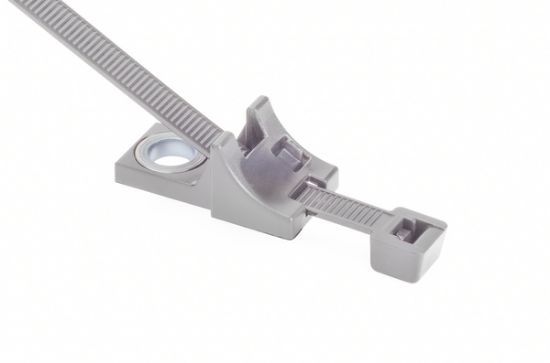

156-00409 T120RHDM8

Cable Tie With Heavy Duty Screw Mount, 390mmx7.6mm(LxW), M8 Screw, Bundle Max. Φ105 mm, 535N Tensile Strength, PA46, -40 °C to +130 °C, Grey
Manufacturer: HellermannTyton
SKU: 156-00409
MPN: T120RHDM8-PA46-GY
Product Family: Heavy Duty Screw Mount Tie (M8)
Unit Price: $3.5391
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
200 + $3.5391
250 + $3.4262
300 + $3.3340
400 + $3.1885
500 + $3.0757
750 + $2.8706
1000 + $2.7251
This product has a minimum quantity of 200
Total Price: $3.5391
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Used mainly in the transport sector, HDM mounts can find various applications depending on their environment. In the automotive sector, these mounts are mainly used to hold engine harnesses. Thanks to their high resistance to heat and movement, harnesses will be maintained securely. They are also found in the railway sector to maintain corrugated tubing and train harnesses. They can also be used in the military and naval sectors to route electrical cables in vehicles. Thanks to its many properties, HDM mounts can be used in many environments.

Features

  • Pre-assembled 2-piece fixing tie
  • Cable tie head can be moved after bundling
  • Secure alignment to the bundle due to H-design
  • A suitable alternative for metal clamps
  • Withstands vibrations and displacement forces
  • High tightening torque through metal bushing
Products specifications
Attribute name Attribute value
Country of Origin FR
Product Family Heavy Duty Screw Mount Tie (M8)
Global Part Number T120RHDM8-PA46-GY
Product Base Type T120RHDM8
Material Abbreviation PA46
Color Grey
Lead Time 16 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 390 mm
Cable Tie Length (Imperial) 15.4 inch
Cable Tie Width (Metric) 7.6 mm
Cable Tie Width (Imperial) 0.30 inch
Tie Strap Thickness 1.8 mm
Max. Bundle Diameter Φ105 mm
Min. Tensile Strength (Metric) 535N
Min. Tensile Strength (Imperial) 120 Lbs (54.6 Kgf)
Mounting Type Screw/Stud Mount With Metal Inlay
Mounting Screw Type M8 Screw
Material Polyamide 4.6 (PA46)
Flammability UL 94-V2
Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 156-00409 T120RHDM8-PA46-GY Catalogue PageHT_Product_Cat_2022_1_12_164-164_COM.pdfCatalogue

Drawing

HellermannTyton 156-00409 T120RHDM8-PA46-GY Drawing PDFCAD_07-396-002-CSF.pdfDrawing

Datasheet

HellermannTyton 156-00409 T120RHDM8-PA46-GY Datasheet PDFTDS_156-00409_com.pdfDatasheet
