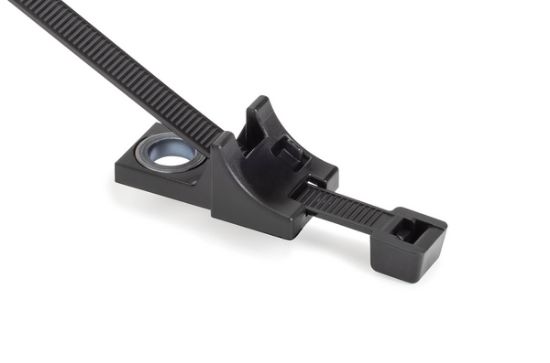

156-01127 T120RHDM8

Cable Tie With Heavy Duty Screw Mount, 390mmx7.6mm(LxW), M8 Screw, Bundle Max. Φ105 mm, 535N Tensile Strength, PA66HS/PA66HIRHS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 156-01127
MPN: T120RHDM8-PA66HS/PA66HIRHS-BK
Product Family: Heavy Duty Screw Mount Tie (M8)
Unit Price: $1.0586
Availability: 1000 in stock
Price list
Quantity Net Price /Piece
250 + $1.0586
400 + $1.0179
500 + $0.9986
750 + $0.9635
1250 + $0.9193
2000 + $0.8786
This product has a minimum quantity of 250
Total Price: $1.0586
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Used mainly in the transport sector, HDM mounts can find various applications depending on their environment. In the automotive sector, these mounts are mainly used to hold engine harnesses. Thanks to their high resistance to heat and movement, harnesses will be maintained securely. They are also found in the railway sector to maintain corrugated tubing and train harnesses. They can also be used in the military and naval sectors to route electrical cables in vehicles. Thanks to its many properties, HDM mounts can be used in many environments.

Features

  • Pre-assembled 2-piece fixing tie
  • Cable tie head can be moved after bundling
  • Secure alignment to the bundle due to H-design
  • A suitable alternative for metal clamps
  • Withstands vibrations and displacement forces
  • High tightening torque through metal bushing
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Heavy Duty Screw Mount Tie (M8)
Global Part Number T120RHDM8-PA66HS/PA66HIRHS-BK
Product Base Type T120RHDM8
Material Abbreviation PA66HS/PA66HIRHS
Color Black
Lead Time 5 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 390 mm
Cable Tie Length (Imperial) 15.4 inch
Cable Tie Width (Metric) 7.6 mm
Cable Tie Width (Imperial) 0.30 inch
Max. Bundle Diameter Φ105 mm
Min. Tensile Strength (Metric) 535N
Min. Tensile Strength (Imperial) 120 Lbs (54.6 Kgf)
Mounting Type Screw/Stud Mount With Metal Inlay
Mounting Screw Type M8 Screw
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability UL 94-V2 (Foot Part: UL 94-HB)
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 156-01127 T120RHDM8-PA66HS/PA66HIRHS-BK Catalogue PageHT_Product_Cat_2022_1_12_164-164_COM.pdfCatalogue

Drawing

HellermannTyton 156-01127 T120RHDM8-PA66HS/PA66HIRHS-BK Drawing PDFCAD_07-396-002-CSF.pdfDrawing

Datasheet

HellermannTyton 156-01127 T120RHDM8-PA66HS/PA66HIRHS-BK Datasheet PDFTDS_156-01127_com.pdfDatasheet
