156-01126 T50RHDM8

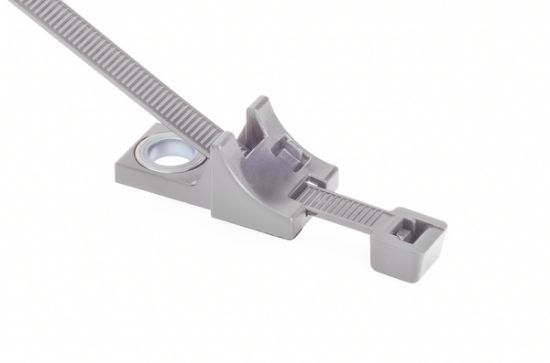

Cable Tie With Heavy Duty Screw Mount, 200mmx4.6mm(LxW), M8 Screw, Bundle Max. Φ50 mm, 225N Tensile Strength, PA46, -40 °C to +130 °C, Grey
Manufacturer: HellermannTyton
SKU: 156-01126
MPN: T50RHDM8-PA46-GY
Product Family: Heavy Duty Screw Mount Tie (M8)
Unit Price: $2.9200
Availability: 1800 in stock
Price list
Quantity Net Price /Piece
400 + $2.9200
500 + $2.8390
750 + $2.6919
1000 + $2.5875
1250 + $2.5065
1500 + $2.4404
2000 + $2.3360
This product has a minimum quantity of 400
Total Price: $2.9200
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Used in the automotive and truck industry for harness fixing in the engine body, these parts offer solutions in many other industrial applications with difficult environment.

Features

  • Pre-assembled 2-piece fixing tie
  • Cable tie head can be moved after bundling
  • Secure alignment to the bundle due to H-design
  • A suitable alternative for metal clamps
  • Withstands vibrations and displacement forces
  • High tightening torque through metal bushing
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Heavy Duty Screw Mount Tie (M8)
Global Part Number T50RHDM8-PA46-GY
Product Base Type T50RHDM8
Material Abbreviation PA46
Color Grey
Lead Time 5 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 200 mm
Cable Tie Length (Imperial) 7.9 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.2 mm
Max. Bundle Diameter Φ50 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Mounting Type Screw/Stud Mount With Metal Inlay
Mounting Screw Type M8 Screw
Material Polyamide 4.6 (PA46)
Flammability UL 94-V2
Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 156-01126 T50RHDM8-PA46-GY Catalogue PageHT_Automotive_Products_101-101_COM.pdfCatalogue

Drawing

HellermannTyton 156-01126 T50RHDM8-PA46-GY Drawing PDFCAD_07-0396-008-CSH.pdfDrawing

Datasheet

HellermannTyton 156-01126 T50RHDM8-PA46-GY Datasheet PDFTDS_156-01126_com.pdfDatasheet
