156-02685 T50RDHDM8-2

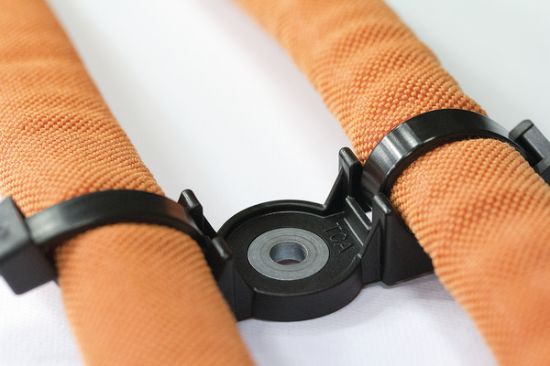

Cable Tie With Heavy Duty Screw Mount, 200mmx4.6mm(LxW), M8 Screw, For M8 Hole, Bundle Max. Φ45 mm, 225N Tensile Strength, PA66HS/PA66HIRHS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 156-02685
MPN: T50RDHDM8-2-PA66HS/PA66HIRHS-BK
Product Family: Heavy Duty Screw Mount Tie (M8)
Unit Price: $2.0440
Availability: 2000 in stock
Price list
Quantity Net Price /Piece
200 + $2.0440
250 + $1.9873
300 + $1.9410
400 + $1.8679
500 + $1.8113
750 + $1.7083
1000 + $1.6352
This product has a minimum quantity of 200
Total Price: $2.0440
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Used in the automotive and truck industry for harness fixing in the engine body, these parts offer solutions in many other industrial applications with difficult environment.

Features

  • Pre-assembled 2-piece fixing tie
  • Cable tie head can be moved after bundling
  • Secure alignment to the bundle due to H-design
  • A suitable alternative for metal clamps
  • Withstands vibrations and displacement forces
  • High tightening torque through metal bushing
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Heavy Duty Screw Mount Tie (M8)
Global Part Number T50RDHDM8-2-PA66HS/PA66HIRHS-BK
Product Base Type T50RDHDM8-2
Material Abbreviation PA66HS/PA66HIRHS
Color Black
Lead Time 5 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 200 mm
Cable Tie Length (Imperial) 7.9 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.2 mm
Max. Bundle Diameter Φ45 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Mounting Type Screw/Stud Mount With Metal Inlay
Mounting Screw Type M8 Screw
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability UL 94-V2 (Foot Part: UL 94-HB)
Operating Temperature -40 °C to +105 °C
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 156-02685 T50RDHDM8-2-PA66HS/PA66HIRHS-BK Drawing PDFCAD_18-2709-001-CSC.pdfDrawing

Datasheet

HellermannTyton 156-02685 T50RDHDM8-2-PA66HS/PA66HIRHS-BK Datasheet PDFTDS_156-02685_com.pdfDatasheet
