151-01077 MP5M3

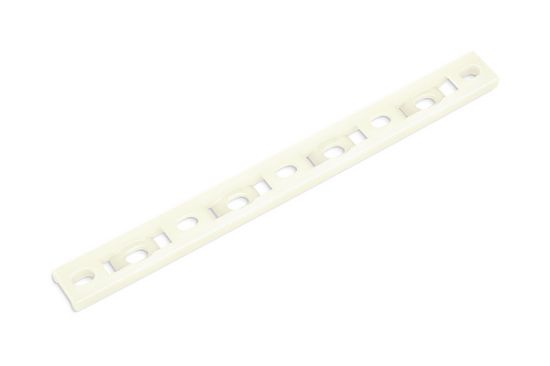

Multiple Cable Tie Mounting Plates, 171.6mmx12.7mm(LxW), M3 Screw, PA66, -40 °C to +85 °C, Nature
Manufacturer: HellermannTyton
SKU: 151-01077
MPN: MP5M3-PA66-NA
Product Family: Screw Cable Tie Mount
Category: Cable Tie Mount
Unit Price: $0.6424
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
600 + $0.6424
750 + $0.6245
1000 + $0.6015
1250 + $0.5836
1500 + $0.5690
2000 + $0.5460
This product has a minimum quantity of 600
Total Price: $0.6424
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Many applications require each cable run to be firmly held in place but to be held separately from adjacent cable runs (example - control cabinets, machinery and military systems). The MP series of mounts can achieve this.

Features

  • Allow multiple cables to run in parallel
  • Simple to fix with two screws
  • Cables are fixed by using a cable tie through any combination of the available slots
Products specifications
Attribute name Attribute value
Country of Origin FR
Product Family Screw Cable Tie Mount
Global Part Number MP5M3-PA66-NA
Product Base Type MP5M3
Material Abbreviation PA66
Color Nature
Lead Time 16 Weeks
Cable Tie Length (Metric) 171.6 mm
Cable Tie Length (Imperial) 6.8 inch
Width (Metric) 12.7 mm
Width (Imperial) 0.50 inch
Mounting Type Screw Mount
Mounting Screw Type M3 Screw
Material Polyamide 6.6 (PA66)
Flammability UL 94-V2
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 151-01077 MP5M3-PA66-NA Catalogue PageHT_Cat_2018_2019_1_7_167-167_Com.pdfCatalogue

Drawing

HellermannTyton 151-01077 MP5M3-PA66-NA Drawing PDFCAD_141597.pdfDrawing

Datasheet

HellermannTyton 151-01077 MP5M3-PA66-NA Datasheet PDFTDS_151-01077_com.pdfDatasheet
