151-00563 MB4

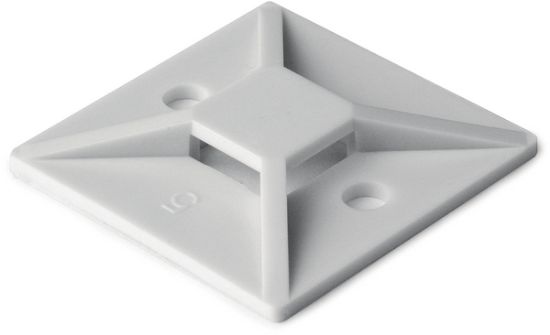

Screw Cable Tie Mounting Base, 4-Way Opening, Used with T18-T50 Series Cable Tie, 28mmx28mm(LxW), M4 Screw, PA66, -40 °C to +85 °C, Nature
Manufacturer: HellermannTyton
SKU: 151-00563
MPN: MB4-PA66-NA
Product Family: Screw Cable Tie Mount
Category: Cable Tie Mount
Unit Price: $0.4994
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
100 + $0.4994
150 + $0.4833
200 + $0.4719
300 + $0.4559
500 + $0.4356
750 + $0.4195
1000 + $0.4081
1500 + $0.3921
2000 + $0.3807
3000 + $0.3646
This product has a minimum quantity of 100
Total Price: $0.4994
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Designed specifically for holding heavier cable bundles these mounting bases can be used in many industries from Agriculture to Truck manufacture, they offer a very secure fixing and can be used with a wide variety of heavy duty cable ties up to 9mm wide.

Features

  • Screwable or self-adhesive versions
  • Simple to install with a screw or bolt
  • Excellent security, particularly in areas of high vibration
  • Maximum surface area with adhesive to achieve high pull-off force
  • 4-way entry for cable tie for quicker and more flexible installation
Products specifications
Attribute name Attribute value
Country of Origin JP
Product Family Screw Cable Tie Mount
Global Part Number MB4-PA66-NA
Product Base Type MB4
Material Abbreviation PA66
Color Nature
Lead Time 16 Weeks
Width (Metric) 28 mm
Width (Imperial) 1.10 inch
Length (Metric) 28 mm
Length (Imperial) 1.1 inch
Mounting Type Screw Mount
Mounting Screw Type M4 Screw
Material Polyamide 6.6 (PA66)
Flammability UL 94-V2
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications ANSI/UL 1565, ANSI/UL 62275
ELV compliant Yes
ROHS compliant Yes
UL-File Number E64962
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 151-00563 MB4-PA66-NA Drawing PDFCAD_16-0339-001-CSU.pdfDrawing

Datasheet

HellermannTyton 151-00563 MB4-PA66-NA Datasheet PDFTDS_151-00563_com.pdfDatasheet
