126-00131 OS170-PM712

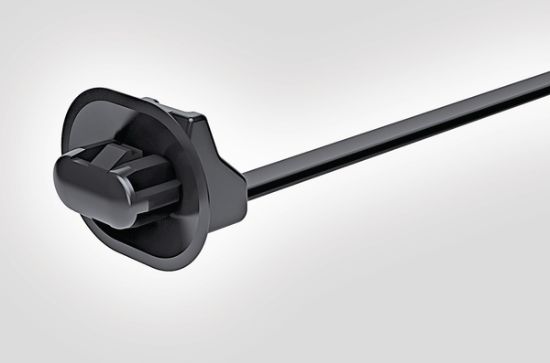

Push Mount Cable Tie, 170mmx5.0mm(LxW), For 7.0x12.0mm Hole, Bundle Max. Φ30 mm, 150N Tensile Strength, PA66HSUV, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 126-00131
MPN: OS170-PM712-PA66HSUV-BK
Product Family: Fir Tree Cable Tie For Oval Hole
Unit Price: $0.1825
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
500 + $0.1825
750 + $0.1779
1500 + $0.1700
2500 + $0.1642
4500 + $0.1576
7500 + $0.1518
12500 + $0.1460
This product has a minimum quantity of 500
Total Price: $0.1825
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

With a diverse range of fixing possibilities are ideal for use in many different industries, including automotive, aerospace and panel building.

Features

  • Easy to install without the need for a tool
  • Arrowhead simply locks into place
  • Disc adjusts tie for pressures from various directions and minimises access of dust and dirt
  • Cable tie head always situated in a defined position
  • Versions for oval holes feature anti-twist protection
Products specifications
Attribute name Attribute value
Country of Origin JP
Product Family Fir Tree Cable Tie For Oval Hole
Global Part Number OS170-PM712-PA66HSUV-BK
Product Base Type OS170-PM712
Material Abbreviation PA66HSUV
Color Black
Lead Time 16 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 170 mm
Cable Tie Length (Imperial) 6.7 inch
Cable Tie Width (Metric) 5 mm
Cable Tie Width (Imperial) 0.20 inch
Tie Strap Thickness 1.5 mm
Max. Bundle Diameter Φ30 mm
Min. Tensile Strength (Metric) 150N
Min. Tensile Strength (Imperial) 34 Lbs (15.3 Kgf)
Mounting Type Push Mount
Fixing Hole Shape Oval Hole
Fitting Hole Diameter 7.0x12.0mm
Fitting Panel Thickness 0.6-1.6 mm
Material Polyamide 6.6, heat and UV-stabilised (PA66HSUV)
Flammability UL 94-V2
UV Resistance Yes
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 126-00131 OS170-PM712-PA66HSUV-BK Catalogue PageHT_Automotive_Products_082-082_COM.pdfCatalogue

Drawing

HellermannTyton 126-00131 OS170-PM712-PA66HSUV-BK Drawing PDFCT2050007CST-pdf.pdfDrawing

Datasheet

HellermannTyton 126-00131 OS170-PM712-PA66HSUV-BK Datasheet PDFTDS_126-00131_com.pdfDatasheet
