111-01394 T50R

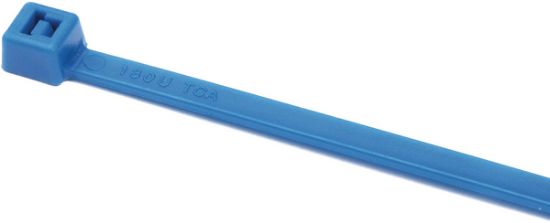

Tefzel High Temp Cable Tie, Chemical Resistant, 201mmx4.7mm(LxW), Bundle Max. Φ50 mm, 225N Tensile Strength, E/TFE, -80 °C to +170 °C, Blue
Manufacturer: HellermannTyton
SKU: 111-01394
MPN: T50R-E/TFE-BU
Product Family: ETFE(Tefzel) Standard Cable Tie
Unit Price: $0.7740
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
2500 + $0.7740
3500 + $0.7440
5000 + $0.7121
This product has a minimum quantity of 2500
Total Price: $0.7740
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable-ties can be used for nearly all kind of applications especially when a high chemical resistance is required.

Features

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Products specifications
Attribute name Attribute value
Country of Origin JP
Product Family ETFE(Tefzel) Standard Cable Tie
Global Part Number T50R-E/TFE-BU
Product Base Type T50R
Material Abbreviation E/TFE
Color Blue
Lead Time 16 Weeks
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 201 mm
Cable Tie Length (Imperial) 7.9 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Tie Strap Thickness 1.5 mm
Max. Bundle Diameter Φ50 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Material Ethylene Tetrafluoroethylene (E/TFE)
Flammability UL 94-V0
UV Resistance Yes
Chemical Resistance Yes
Application Area Semiconductor, Railway Vehicle, Automotive and etc.
Operating Temperature -80 °C to +170 °C
Specifications STD78750
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 111-01394 T50R-E/TFE-BU Catalogue PageHT_Product_Cat_2022_1_1_049-049_COM.pdfCatalogue

Drawing

HellermannTyton 111-01394 T50R-E/TFE-BU Drawing PDFCAD_141489.pdfDrawing

Datasheet

HellermannTyton 111-01394 T50R-E/TFE-BU Datasheet PDFTDS_111-01394_com.pdfDatasheet
