111-02446 T18R

Name: 111-02446 T18R
SKU: 111-02446
Price: 0.40 USD
Availability: InStock

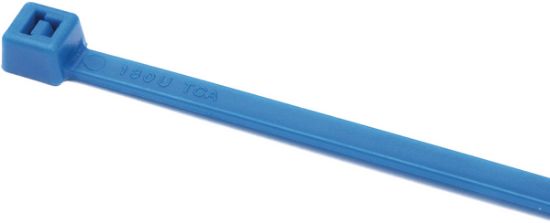

Tefzel High Temp Cable Tie, Chemical Resistant, 101.6mmx2.5mm(LxW), Bundle Max. Φ22 mm, 80N Tensile Strength, E/TFE, -80 °C to +170 °C, Blue

Manufacturer: HellermannTyton

SKU: 111-02446

MPN: T18R-E/TFE-BU

Product Family: ETFE(Tefzel) Standard Cable Tie

Category: Standard Cable Tie-High Temp

HT_Product_Cat_2022_1_1_049-049_COM.pdfCatalogue

CAD_10-0585-001-CSC.pdfDrawing

TDS_111-02446_com.pdfDatasheet

Unit Price: $0.4045

Availability: 40000 in stock

Price list

Quantity	Net Price /Piece
2500 +	$0.4045
3500 +	$0.3878
4500 +	$0.3753
6000 +	$0.3611
7500 +	$0.3500
10000 +	$0.3357

This product has a minimum quantity of 2500

Qty:

Total Price: $0.4045

Request a free, non-obligation quote today

Create your individual quote quickly and easily

Full Description

E/TFE or Tefzel® cable ties are used when higher chemical resistance and/or temperatures from -80°C up to +170 °C are required. These ties are most likely chosen for challenging applications in industries like food and beverage, aerospace, automotive or railway.

Features

Blue cable tie offering high chemical resistance
Suitable for applications with temperatures up to +170 °C
Resistant to radioactivity and UV light
E/TFE is a non hydroscopic material, no moisture absorption
Complying with UL94 V0 requirements

Products specifications

Attribute name	Attribute value
Country of Origin	CN
Product Family	ETFE(Tefzel) Standard Cable Tie
Global Part Number	T18R-E/TFE-BU
Product Base Type	T18R
Material Abbreviation	E/TFE
Color	Blue
Lead Time	5 Weeks
Tie Closure	Plastic Pawl
Variant	Inside Serrated
Cable Tie Length (Metric)	101.6 mm
Cable Tie Length (Imperial)	4.0 inch
Cable Tie Width (Metric)	2.5 mm
Cable Tie Width (Imperial)	0.10 inch
Tie Strap Thickness	1.2 mm
Max. Bundle Diameter	Φ22 mm
Min. Tensile Strength (Metric)	80N
Min. Tensile Strength (Imperial)	18 Lbs (8.2 Kgf)
Material	Ethylene Tetrafluoroethylene (E/TFE)
Flammability	UL 94-V0
UV Resistance	Yes
Chemical Resistance	Yes
Application Area	Semiconductor, Railway Vehicle, Automotive and etc.
Operating Temperature	-80 °C to +170 °C
ELV compliant	Yes
ROHS compliant	Yes
Manufacturer	HellermannTyton
Product Unit	Piece
Catalogue	HT_Product_Cat_2022_1_1_049-049_COM.pdfCatalogue
Drawing	CAD_10-0585-001-CSC.pdfDrawing
Datasheet	TDS_111-02446_com.pdfDatasheet
