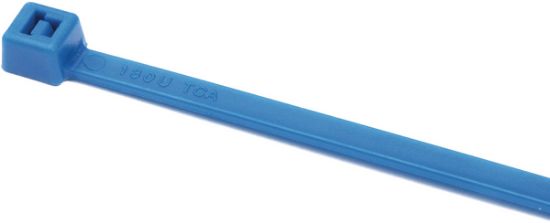

111-01125 T120R

Tefzel High Temp Cable Tie, Chemical Resistant, 387mmx7.4mm(LxW), Bundle Max. Φ105 mm, 535N Tensile Strength, E/TFE, -80 °C to +170 °C, Blue
Manufacturer: HellermannTyton
SKU: 111-01125
MPN: T120R-E/TFE-BU
Product Family: ETFE(Tefzel) Standard Cable Tie
Unit Price: $2.5964
Availability: 10000 in stock
Price list
Quantity Net Price /Piece
400 + $2.5964
500 + $2.5332
750 + $2.4183
1000 + $2.3368
This product has a minimum quantity of 400
Total Price: $2.5964
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.

Features

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family ETFE(Tefzel) Standard Cable Tie
Global Part Number T120R-E/TFE-BU
Product Base Type T120R
Material Abbreviation E/TFE
Color Blue
Lead Time 5 Weeks
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 387 mm
Cable Tie Length (Imperial) 15.2 inch
Cable Tie Width (Metric) 7.4 mm
Cable Tie Width (Imperial) 0.29 inch
Tie Strap Thickness 1.9 mm
Max. Bundle Diameter Φ105 mm
Min. Tensile Strength (Metric) 535N
Min. Tensile Strength (Imperial) 120 Lbs (54.6 Kgf)
Material Ethylene Tetrafluoroethylene (E/TFE)
Flammability UL 94-V0
UV Resistance Yes
Chemical Resistance Yes
Application Area Semiconductor, Railway Vehicle, Automotive and etc.
Operating Temperature -80 °C to +170 °C
Specifications ANSI/UL 1565, ANSI/UL 62275, ANSI/UL 746B
ELV compliant Yes
ROHS compliant Yes
UL-File Number E193818
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 111-01125 T120R-E/TFE-BU Catalogue PageHT_Product_Cat_2022_1_1_049-049_COM.pdfCatalogue

Drawing

HellermannTyton 111-01125 T120R-E/TFE-BU Drawing PDFCAD_11-0589-002-CSC.pdfDrawing

Datasheet

HellermannTyton 111-01125 T120R-E/TFE-BU Datasheet PDFTDS_111-01125_com.pdfDatasheet
