111-00698 T30R

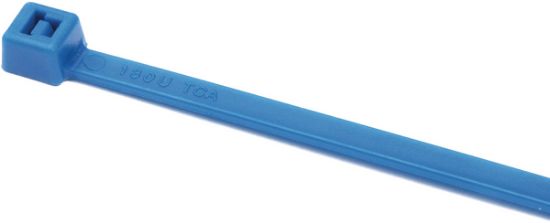

Tefzel High Temp Cable Tie, Chemical Resistant, 150mmx3.5mm(LxW), Bundle Max. Φ36 mm, 135N Tensile Strength, E/TFE, -80 °C to +170 °C, Blue
Manufacturer: HellermannTyton
SKU: 111-00698
MPN: T30R-E/TFE-BU
Product Family: ETFE(Tefzel) Standard Cable Tie
Unit Price: $1.0086
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
2000 + $1.0086
2500 + $0.9806
3500 + $0.9385
4500 + $0.9070
6000 + $0.8709
7500 + $0.8430
10000 + $0.8069
This product has a minimum quantity of 2000
Total Price: $1.0086
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.

Features

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Products specifications
Attribute name Attribute value
Country of Origin JP
Product Family ETFE(Tefzel) Standard Cable Tie
Global Part Number T30R-E/TFE-BU
Product Base Type T30R
Material Abbreviation E/TFE
Color Blue
Lead Time 16 Weeks
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 150 mm
Cable Tie Length (Imperial) 5.9 inch
Cable Tie Width (Metric) 3.5 mm
Cable Tie Width (Imperial) 0.14 inch
Tie Strap Thickness 1.2 mm
Max. Bundle Diameter Φ36 mm
Min. Tensile Strength (Metric) 135N
Min. Tensile Strength (Imperial) 30 Lbs (13.8 Kgf)
Material Ethylene Tetrafluoroethylene (E/TFE)
Flammability UL 94-V0
UV Resistance Yes
Chemical Resistance Yes
Application Area Semiconductor, Railway Vehicle, Automotive and etc.
Operating Temperature -80 °C to +170 °C
Specifications ANSI/UL 1565, ANSI/UL 62275
ELV compliant Yes
ROHS compliant Yes
UL-File Number E64962
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 111-00698 T30R-E/TFE-BU Catalogue PageHT_Product_Cat_2022_1_1_049-049_COM.pdfCatalogue

Drawing

HellermannTyton 111-00698 T30R-E/TFE-BU Drawing PDFXCT-TCJ042CST-pdf.pdfDrawing

Datasheet

HellermannTyton 111-00698 T30R-E/TFE-BU Datasheet PDFTDS_111-00698_com.pdfDatasheet
