CTH10034 T50ROS

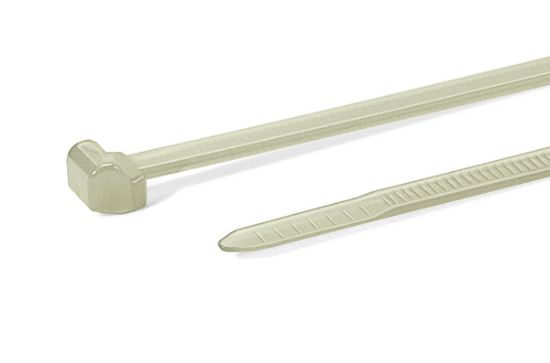

Standard Cable Tie, Outside Serrated, 200mmx4.6mm(LxW), Bundle Max. Φ50 mm, 225N Tensile Strength, PA46, -40 °C to +130 °C, Nature
Manufacturer: HellermannTyton
SKU: CTH10034
MPN: T50ROS-PA46-NA
Product Family: PA46 Standard Cable Tie
Unit Price: $0.2555
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
2000 + $0.2555
2500 + $0.2484
3500 + $0.2377
4500 + $0.2298
6000 + $0.2206
7500 + $0.2135
10000 + $0.2044
This product has a minimum quantity of 2000
Total Price: $0.2555
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

OS-Series are well-proven in many areas where thin-walled or soft insulation wires and cables are being installed, e. g. automotive and aircraft industry. OS ties made from material PA66V0 are suitable for applications where safety regulations, e. g. reduction of smoke and dangerous gases, are required.

Features

  • Outside serrated cable tie with smooth surface to the bundle
  • Tie follows the contours of the cable bundle perfectly
  • Takes up less space due to curved head
  • Easy insertion and high tensile strength
  • For higher temperature or Limited Fire Hazard demand: Material PA46 or PA66V0
  • Easy application either manually or with a processing tool
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family PA46 Standard Cable Tie
Global Part Number T50ROS-PA46-NA
Product Base Type T50ROS
Material Abbreviation PA46
Color Nature
Lead Time 8 Weeks
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 200 mm
Cable Tie Length (Imperial) 7.9 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.3 mm
Max. Bundle Diameter Φ50 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Material Polyamide 4.6 (PA46)
Flammability UL 94-V2
Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 118-00040 T50ROS-PA46-NA Drawing PDFCAD_98-0602-001-CSH.pdfDrawing

Datasheet

HellermannTyton 118-00040 T50ROS-PA46-NA Datasheet PDFTDS_118-00040_com.pdfDatasheet
