111-00547 T18R

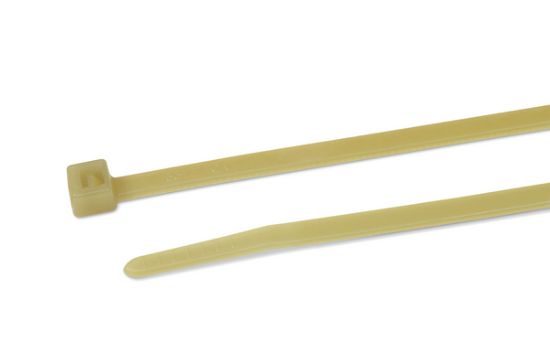

High Temperature Cable Tie, 100mmx2.5mm(LxW), Bundle Max. Φ22 mm, 80N Tensile Strength, PA46, -40 °C to +130 °C, Nature
Manufacturer: HellermannTyton
Unit Price: $0.1379
Availability: Out of stock - on backorder and will be dispatched once in stock (2 weeks).
Price list
Quantity Net Price /Piece
4000 + $0.1379
5000 + $0.1344
7500 + $0.1280
9000 + $0.1251
15000 + $0.1171
20000 + $0.1126
30000 + $0.1062
This product has a minimum quantity of 4000
Total Price: $0.1379
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

These inside serrated cable ties are made from Polyamide 4.6 (PA46). They can be applied in environments with temperatures up to +195 °C (for 500 hours) which makes them suitable for applications where a broader temperature range is required. Polyamide 4.6 is a well known material in the automotive, railway or white goods area. An application tool is recommended to ensure greater process reliability while installing cable ties.

Features

  • Cable tie for high temperature applications up to +150 °C (5000 h) and +195 °C (500 h)
  • Available in different sizes to cover various bundle diameters
  • Low smoke generation in the event of a fire
  • PA46 is a moisture sensitive material
  • Inside serrated cable tie offers strong hold around bundles
  • Easy application either manually or with an application tool
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family PA46 Standard Cable Tie
Global Part Number T18R-PA46-NA
Product Base Type T18R
Material Abbreviation PA46
Color Nature
Lead Time 5 Weeks
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 100 mm
Cable Tie Length (Imperial) 3.9 inch
Cable Tie Width (Metric) 2.5 mm
Cable Tie Width (Imperial) 0.10 inch
Tie Strap Thickness 1.0 mm
Max. Bundle Diameter Φ22 mm
Min. Tensile Strength (Metric) 80N
Min. Tensile Strength (Imperial) 18 Lbs (8.2 Kgf)
Material Polyamide 4.6 (PA46)
Flammability UL 94-V2
Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
UL-File Number E193818
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 111-00547 T18R-PA46-NA Catalogue PageHT_Product_Cat_2022_1_1_048-048_COM.pdfCatalogue

Drawing

HellermannTyton 111-00547 T18R-PA46-NA Drawing PDFCAD_10-0585-001-CSH.pdfDrawing

Datasheet

HellermannTyton 111-00547 T18R-PA46-NA Datasheet PDFTDS_111-00547_com.pdfDatasheet
