111-00561 T50R

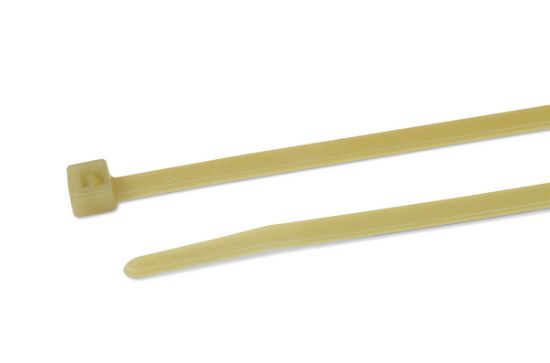

High Temperature Cable Tie, 200mmx4.6mm(LxW), Bundle Max. Φ50 mm, 225N Tensile Strength, PA46, -40 °C to +130 °C, Nature
Manufacturer: HellermannTyton
Unit Price: $0.1109
Availability: 70000 in stock
Price list
Quantity Net Price /Piece
3500 + $0.1109
7500 + $0.1060
14000 + $0.1020
This product has a minimum quantity of 3500
Total Price: $0.1109
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

These inside serrated cable ties are made from Polyamide 4.6 (PA46). They can be applied in environments with continuous temperatures up to +195 °C (for 500 hours) which makes them suitable for applications where a broader temperature range is required. Polyamide 4.6 is a well-known material in the automotive, railway or white goods area. An application tool is recommended to ensure greater process reliability while installing cable ties.

Features

  • Cable tie for high temperature applications up to +150 °C (5000 h) and +195 °C (500 h)
  • Available in different sizes to cover various bundle diameters
  • Low smoke generation in the event of a fire
  • PA46 is a moisture sensitive material
  • Inside serrated cable tie offers strong hold around bundles
  • Easy application either manually or with an application tool
  • Operating temperature (long-term) up to +130 °C
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family PA46 Standard Cable Tie
Global Part Number T50R-PA46-NA
Product Base Type T50R
Material Abbreviation PA46
Color Nature
Lead Time 5 Weeks
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 200 mm
Cable Tie Length (Imperial) 7.9 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.2 mm
Max. Bundle Diameter Φ50 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Material Polyamide 4.6 (PA46)
Flammability UL 94-V2
Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
UL-File Number E193818
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 111-00561 T50R-PA46-NA Catalogue PageHT_Product_Cat_2022_1_1_048-048_COM.pdfCatalogue

Drawing

HellermannTyton 111-00561 T50R-PA46-NA Drawing PDFCAD_12-0123-001-CSC.pdfDrawing

Datasheet

HellermannTyton 111-00561 T50R-PA46-NA Datasheet PDFTDS_111-00561_com.pdfDatasheet
