157-04010 T50SOSSBS5E-2

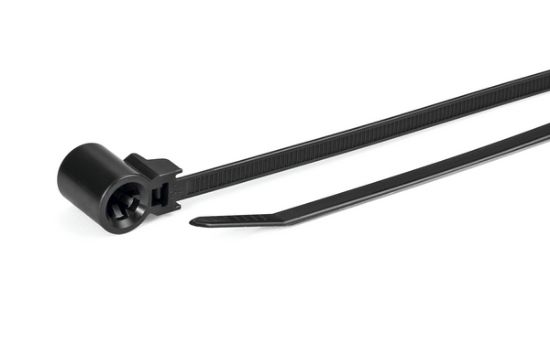

Cable Tie With Stud Mount, 161mmx4.7mm(LxW), M5, Bundle Max. Φ35 mm, 225N Tensile Strength, PA66HIRHSUV, -40 °C to +110 °C, Black
Manufacturer: HellermannTyton
SKU: 157-04010
MPN: T50SOSSBS5E-2-PA66HIRHSUV-BK
Unit Price: $0.2197
Availability: 800 in stock
Price list
Quantity Net Price /Piece
500 + $0.2197
750 + $0.2126
1250 + $0.2037
1750 + $0.1978
2500 + $0.1916
4000 + $0.1834
6000 + $0.1763
9000 + $0.1692
This product has a minimum quantity of 500
Total Price: $0.2197
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.

Features

  • One-piece fixing ties
  • High specification materials
  • Superior design
  • Suitable for complex applications
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Stud Mount Cable Tie
Global Part Number T50SOSSBS5E-2-PA66HIRHSUV-BK
Product Base Type T50SOSSBS5E-2
Material Abbreviation PA66HIRHSUV
Color Black
Lead Time 5 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 161 mm
Cable Tie Length (Imperial) 6.3 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Tie Strap Thickness 1.35 mm
Max. Bundle Diameter Φ35 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Mounting Type Weld Stud Mount
Fitting Stud Diameter M5
Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Flammability UL 94-HB
UV Resistance Yes
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 157-04010 T50SOSSBS5E-2-PA66HIRHSUV-BK Drawing PDFCAD_15-0047-002-CSC.pdfDrawing

Datasheet

HellermannTyton 157-04010 T50SOSSBS5E-2-PA66HIRHSUV-BK Datasheet PDFTDS_157-04010_com.pdfDatasheet
