157-00510 T50SOSSB5-High-E-C-CC

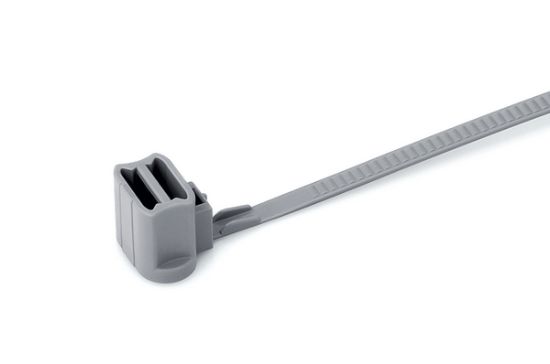

Cable Tie With Stud Mount, 167mmx5.0mm(LxW), M5, M6, Bundle Max. Φ35 mm, 222.4N Tensile Strength, PA66HS, -40 °C to +105 °C, Grey
Manufacturer: HellermannTyton
Unit Price: $0.1019
Availability: Out of stock
Price list
Quantity Net Price /Piece
2500 + $0.1019
7500 + $0.1003
20000 + $0.0988
This product has a minimum quantity of 2500
Total Price: $0.1019
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.

Features

  • One-piece fixing ties
  • High specification materials
  • Superior design
  • Suitable for complex applications
Products specifications
Attribute name Attribute value
Country of Origin US
Product Family Stud Mount Cable Tie
Global Part Number T50SOSSB5-High-E-C-CC-PA66HS-GY
Product Base Type T50SOSSB5-High-E-C-CC
Material Abbreviation PA66HS
Color Grey
Lead Time 16 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 167 mm
Cable Tie Length (Imperial) 6.6 inch
Cable Tie Width (Metric) 5 mm
Cable Tie Width (Imperial) 0.20 inch
Max. Bundle Diameter Φ35 mm
Min. Tensile Strength (Metric) 222.4N
Min. Tensile Strength (Imperial) 50 Lbs (22.7 Kgf)
Mounting Type Weld Stud Mount
Fitting Stud Diameter M5, M6
Material Polyamide 6.6, heat stabilised (PA66HS)
Flammability UL 94-V2
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 157-00510 T50SOSSB5-High-E-C-CC-PA66HS-GY Catalogue PageHT_Automotive_Products_094-094_COM.pdfCatalogue

Drawing

HellermannTyton 157-00510 T50SOSSB5-High-E-C-CC-PA66HS-GY Drawing PDFCAD_CT10-0532-002CST.pdfDrawing

Datasheet

HellermannTyton 157-00510 T50SOSSB5-High-E-C-CC-PA66HS-GY Datasheet PDFTDS_157-00510_com.pdfDatasheet
