157-00230 T50SOSWSP5E

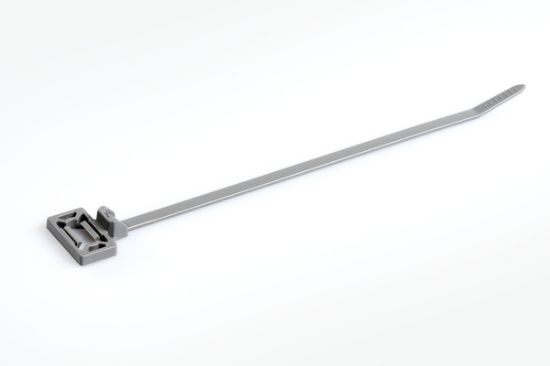

Cable Tie With Stud Mount, 163mmx4.6mm(LxW), M5, Bundle Max. Φ35 mm, 200N Tensile Strength, PA46, -40 °C to +130 °C, Grey
Manufacturer: HellermannTyton
SKU: 157-00230
MPN: T50SOSWSP5E-PA46-GY
Unit Price: $0.2935
Availability: 4500 in stock
Price list
Quantity Net Price /Piece
600 + $0.2935
1000 + $0.2805
1250 + $0.2748
2000 + $0.2628
3000 + $0.2525
4000 + $0.2451
6000 + $0.2348
This product has a minimum quantity of 600
Total Price: $0.2935
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.

Features

  • Cable tie head always situated in defined position
  • Easy to install without the need for a tool
  • Provides a 5 – 6 mm lateral adjustment possibility
  • Very low profile, stackable design
  • For bundles which need to be routed in different directions
Products specifications
Attribute name Attribute value
Country of Origin GB
Product Family Stud Mount Cable Tie
Global Part Number T50SOSWSP5E-PA46-GY
Product Base Type T50SOSWSP5E
Material Abbreviation PA46
Color Grey
Lead Time 16 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 163 mm
Cable Tie Length (Imperial) 6.4 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.35 mm
Max. Bundle Diameter Φ35 mm
Min. Tensile Strength (Metric) 200N
Min. Tensile Strength (Imperial) 45 Lbs (20.4 Kgf)
Mounting Type Weld Stud Mount
Fitting Stud Diameter M5
Material Polyamide 4.6 (PA46)
Flammability UL 94-V2
Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 157-00230 T50SOSWSP5E-PA46-GY Drawing PDFCAD_141696.pdfDrawing

Datasheet

HellermannTyton 157-00230 T50SOSWSP5E-PA46-GY Datasheet PDFTDS_157-00230_com.pdfDatasheet
