157-00047 LFC165-2

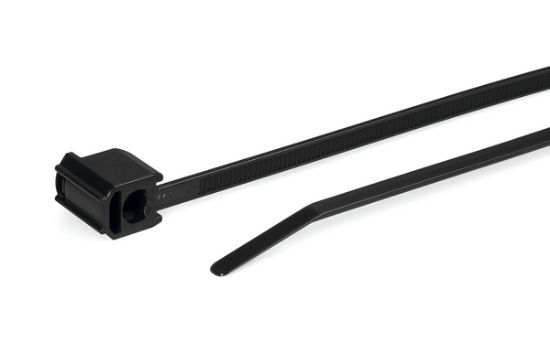

Cable Tie With Stud Mount, 165mmx4.7mm(LxW), M5, Bundle Max. Φ35 mm, 150N Tensile Strength, PA66HS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
Unit Price: $0.1460
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
750 + $0.1460
1250 + $0.1410
2000 + $0.1364
3500 + $0.1310
6000 + $0.1257
9000 + $0.1218
15000 + $0.1168
This product has a minimum quantity of 750
Total Price: $0.1460
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.

Features

  • 1-piece fixing tie for 5 mm studs
  • Cable tie head always situated in defined position
  • Easy to install without the need for a tool
  • Bundle runs very close next to stud
  • Closed stud retainer protects the bundle against damage
  • Contact surface allows secure bundling with tensioning tool
Products specifications
Attribute name Attribute value
Country of Origin GB
Product Family Stud Mount Cable Tie
Global Part Number LFC165-2-PA66HS-BK
Product Base Type LFC165-2
Material Abbreviation PA66HS
Color Black
Lead Time 16 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Cable Tie Length (Metric) 165 mm
Cable Tie Length (Imperial) 6.5 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Tie Strap Thickness 1.3 mm
Max. Bundle Diameter Φ35 mm
Min. Tensile Strength (Metric) 150N
Min. Tensile Strength (Imperial) 34 Lbs (15.3 Kgf)
Mounting Type Weld Stud Mount
Fitting Stud Diameter M5
Material Polyamide 6.6, heat stabilised (PA66HS)
Flammability UL 94-V2
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 157-00047 LFC165-2-PA66HS-BK Catalogue PageHT_Automotive_Cat_2024_1_11_204-204_COM.pdfCatalogue

Drawing

HellermannTyton 157-00047 LFC165-2-PA66HS-BK Drawing PDFCAD_07-0545-001-CSC.pdfDrawing

Datasheet

HellermannTyton 157-00047 LFC165-2-PA66HS-BK Datasheet PDFTDS_157-00047_com.pdfDatasheet
