157-00037 T50SOSSB5-High-E-C-CC

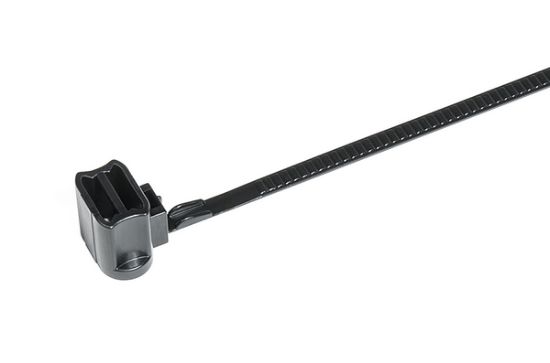

Cable Tie With Stud Mount, 167mmx5.0mm(LxW), M5, M6, Bundle Max. Φ35 mm, 225N Tensile Strength, PA66HS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
Unit Price: $0.0989
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
1000 + $0.0989
1750 + $0.0952
2500 + $0.0928
4500 + $0.0890
7500 + $0.0856
10000 + $0.0837
20000 + $0.0791
This product has a minimum quantity of 1000
Total Price: $0.0989
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where weld studs or ISO bolts are used and cables need to be bundled and secured.

Features

  • One-piece fixing ties
  • High specification materials
  • Superior design
  • Suitable for complex applications
Products specifications
Attribute name Attribute value
Country of Origin DE
Product Family Stud Mount Cable Tie
Global Part Number T50SOSSB5-High-E-C-CC-PA66HS-BK
Product Base Type T50SOSSB5-High-E-C-CC
Material Abbreviation PA66HS
Color Black
Lead Time 16 Weeks
Cable Tie Style 1-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Outside Serrated
Cable Tie Length (Metric) 167 mm
Cable Tie Length (Imperial) 6.6 inch
Cable Tie Width (Metric) 5 mm
Cable Tie Width (Imperial) 0.20 inch
Max. Bundle Diameter Φ35 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Mounting Type Weld Stud Mount
Fitting Stud Diameter M5, M6
Material Polyamide 6.6, heat stabilised (PA66HS)
Flammability UL 94-V2
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 157-00037 T50SOSSB5-High-E-C-CC-PA66HS-BK Catalogue PageHT_Automotive_Cat_2024_1_11_202-202_COM.pdfCatalogue

Drawing

HellermannTyton 157-00037 T50SOSSB5-High-E-C-CC-PA66HS-BK Drawing PDFCAD_CT10-0532-002CST.pdfDrawing

Datasheet

HellermannTyton 157-00037 T50SOSSB5-High-E-C-CC-PA66HS-BK Datasheet PDFTDS_157-00037_com.pdfDatasheet
