156-02550 T50SMVCOC10-14

Name: 156-02550 T50SMVCOC10-14
SKU: 156-02550
Price: 0.45 USD
Availability: InStock

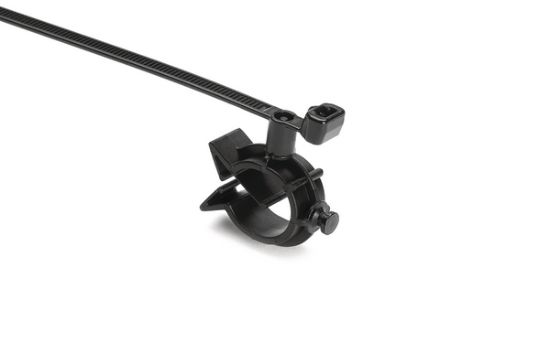

Cable Tie With Pipe Clip, 210mmx4.7mm(LxW), Attached To Φ10-14mm Pipe, Bundle Max. Φ50 mm, 222N Tensile Strength, PA66HIRHS, -40 °C to +105 °C, Black

Manufacturer: HellermannTyton

SKU: 156-02550

MPN: T50SMVCOC10-14-PA66HIRHS-BK

Product Family: Cable Tie With Omega Clip

Category: Pipe Clip Cable Tie

Unit Price: $0.4494

Availability: Out of Stock - on backorder and will be dispatched once in stock.

This product has a minimum quantity of 1000

Qty:

Total Price: $0.4494

Create your individual quote quickly and easily

Full Description

Features

Clips offer an easy securing option when cable ties can't be used.
Clips are reusable, making relocation or adjustments simple.
Clips can be attached to the panel prior to installing the pipe or hose.
Bundle can rotate to any orientation, allowing routing in any direction regardless of mounting point.
All-in-one bundling and mounting solution reduces costs.

Products specifications

Attribute name	Attribute value
Country of Origin	PL
Product Family	Cable Tie With Omega Clip
Global Part Number	T50SMVCOC10-14-PA66HIRHS-BK
Product Base Type	T50SMVCOC10-14
Material Abbreviation	PA66HIRHS
Color	Black
Lead Time	16 Weeks
Cable Tie Style	2-Piece Fixing Tie
Tie Closure	Plastic Pawl
Variant	Inside Serrated
Cable Tie Length (Metric)	210 mm
Cable Tie Length (Imperial)	8.3 inch
Cable Tie Width (Metric)	4.7 mm
Cable Tie Width (Imperial)	0.19 inch
Tie Strap Thickness	1.35 mm
Max. Bundle Diameter	Φ50 mm
Min. Tensile Strength (Metric)	222N
Min. Tensile Strength (Imperial)	50 Lbs (22.6 Kgf)
Mounting Type	Omega Pipe Clip Mount
Suitable Pipe Diameter	Φ10.0-14.0 mm
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability	UL 94-HB
Operating Temperature	-40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant	Yes
ROHS compliant	Yes
Manufacturer	HellermannTyton
Product Unit	Piece
Catalogue	HT_Automotive_Cat_2024_1_14_247-248_COM.pdfCatalogue
Drawing	CAD_05-0044-005-CSU.pdfDrawing
Datasheet	TDS_156-02550_com.pdfDatasheet
