156-01032 T50SVCOC10-14

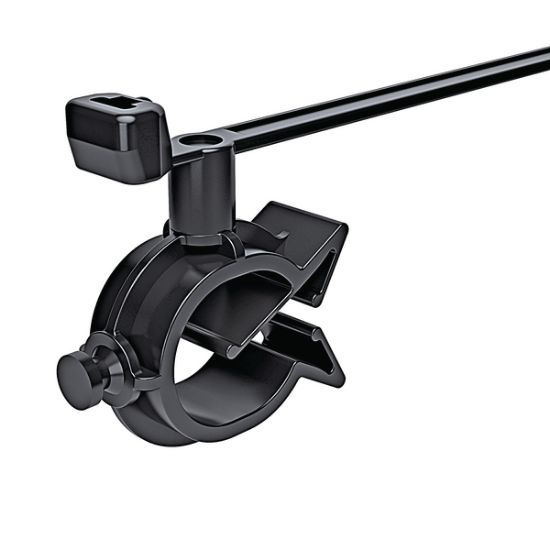

Cable Tie With Pipe Clip, 155mmx4.7mm(LxW), Attached To Φ10-14mm Pipe, Bundle Max. Φ35 mm, 222N Tensile Strength, PA66/PA66HIRHS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 156-01032
MPN: T50SVCOC10-14-PA66HS/PA66HIRHS-BK
Product Family: Cable Tie With Omega Clip
Unit Price: $0.6092
Availability: 60000 in stock
Price list
Quantity Net Price /Piece
350 + $0.6092
500 + $0.5859
750 + $0.5595
1000 + $0.5407
1250 + $0.5262
1500 + $0.5143
2000 + $0.4955
3000 + $0.4691
This product has a minimum quantity of 350
Total Price: $0.6092
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.

Features

  • simply clip onto a wire or hose
  • Fixing clip offers full 360° rotation
  • Routed cable can move in any direction in relation to the fixing point
  • Inside serrated cable tie
  • Ideally used in the Automotive Industry
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Cable Tie With Omega Clip
Global Part Number T50SVCOC10-14-PA66HS/PA66HIRHS-BK
Product Base Type T50SVCOC10-14
Material Abbreviation PA66/PA66HIRHS
Color Black
Lead Time 5 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 155 mm
Cable Tie Length (Imperial) 6.1 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Tie Strap Thickness 1.35 mm
Max. Bundle Diameter Φ35 mm
Min. Tensile Strength (Metric) 222N
Min. Tensile Strength (Imperial) 50 Lbs (22.6 Kgf)
Mounting Type Omega Pipe Clip Mount
Suitable Pipe Diameter Φ10.0-14.0 mm
Material Polyamide 6.6 (PA66), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability UL 94-V2 (Foot Part: UL 94-HB)
Operating Temperature -40 °C to +105 °C
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 156-01032 T50SVCOC10-14-PA66HS/PA66HIRHS-BK Catalogue PageHT_Automotive_Cat_2024_1_14_247-248_COM.pdfCatalogue

Drawing

HellermannTyton 156-01032 T50SVCOC10-14-PA66HS/PA66HIRHS-BK Drawing PDFCAD_05-0044-004-CSH.pdfDrawing

Datasheet

HellermannTyton 156-01032 T50SVCOC10-14-PA66HS/PA66HIRHS-BK Datasheet PDFTDS_156-01032_com.pdfDatasheet
