156-00696 T50SVCOC19-24.5

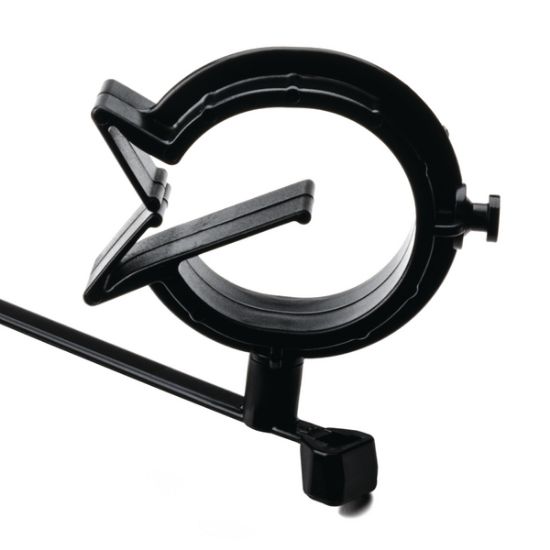

Cable Tie With Pipe Clip, 155mmx4.7mm(LxW), Attached To Φ19-24.5mm Pipe, Bundle Max. Φ35 mm, 222N Tensile Strength, PA66HS/PA66HIRHS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 156-00696
MPN: T50SVCOC19-24.5-PA66HS/PA66HIRHS-BK
Product Family: Cable Tie With Omega Clip
Unit Price: $0.5992
Availability: 10000 in stock
Price list
Quantity Net Price /Piece
350 + $0.5992
500 + $0.5817
750 + $0.5617
1250 + $0.5366
1750 + $0.5201
2500 + $0.5025
4000 + $0.4794
This product has a minimum quantity of 350
Total Price: $0.5992
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.

Features

  • Simply clip onto a wire or hose
  • Fixing clip offers full 360° rotation
  • Routed cable can move in any direction in relation to the fixing point
  • Inside serrated cable tie
  • Ideally used in the Automotive Industry
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Cable Tie With Omega Clip
Global Part Number T50SVCOC19-24.5-PA66HS/PA66HIRHS-BK
Product Base Type T50SVCOC19-24.5
Material Abbreviation PA66HS/PA66HIRHS
Color Black
Lead Time 5 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 155 mm
Cable Tie Length (Imperial) 6.1 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Tie Strap Thickness 1.35 mm
Max. Bundle Diameter Φ35 mm
Min. Tensile Strength (Metric) 222N
Min. Tensile Strength (Imperial) 50 Lbs (22.6 Kgf)
Mounting Type Omega Pipe Clip Mount
Suitable Pipe Diameter Φ19.0-24.5 mm
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability UL 94-V2 (Foot Part: UL 94-HB)
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 156-00696 T50SVCOC19-24.5-PA66HS/PA66HIRHS-BK Catalogue PageHT_Product_Cat_2022_1_14_202-203_COM.pdfCatalogue

Drawing

HellermannTyton 156-00696 T50SVCOC19-24.5-PA66HS/PA66HIRHS-BK Drawing PDFCAD_05-0046-006-CSH.pdfDrawing

Datasheet

HellermannTyton 156-00696 T50SVCOC19-24.5-PA66HS/PA66HIRHS-BK Datasheet PDFTDS_156-00696_com.pdfDatasheet
