156-01345 T50SVCOC31-39

Name: 156-01345 T50SVCOC31-39
SKU: 156-01345
Price: 0.71 USD
Availability: InStock

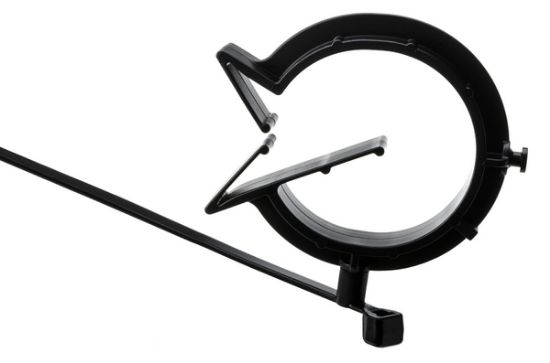

Cable Tie With Pipe Clip, 155mmx4.7mm(LxW), Attached To Φ31-39mm Pipe, Bundle Max. Φ35 mm, 222N Tensile Strength, PA66HS/PA66HIRHS, -40 °C to +105 °C, Black

Manufacturer: HellermannTyton

SKU: 156-01345

MPN: T50SVCOC31-39-PA66HS/PA66HIRHS-BK

Product Family: Cable Tie With Omega Clip

Category: Pipe Clip Cable Tie

HT_Automotive_Cat_2024_1_14_247-248_COM.pdfCatalogue

CAD_06-0210-001-CSC.pdfDrawing

TDS_156-01345_com.pdfDatasheet

Unit Price: $0.7091

Availability: Out of Stock - on backorder and will be dispatched once in stock.

Price list

Quantity	Net Price /Piece
250 +	$0.7091
400 +	$0.6863
750 +	$0.6558
1000 +	$0.6419
1750 +	$0.6147
3000 +	$0.5886

This product has a minimum quantity of 250

Qty:

Total Price: $0.7091

Request a free, non-obligation quote today

Create your individual quote quickly and easily

Full Description

These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.

Products specifications

Attribute name	Attribute value
Country of Origin	PL
Product Family	Cable Tie With Omega Clip
Global Part Number	T50SVCOC31-39-PA66HS/PA66HIRHS-BK
Product Base Type	T50SVCOC31-39
Material Abbreviation	PA66HS/PA66HIRHS
Color	Black
Lead Time	16 Weeks
Cable Tie Style	2-Piece Fixing Tie
Tie Closure	Plastic Pawl
Variant	Inside Serrated
Cable Tie Length (Metric)	155 mm
Cable Tie Length (Imperial)	6.1 inch
Cable Tie Width (Metric)	4.7 mm
Cable Tie Width (Imperial)	0.19 inch
Tie Strap Thickness	1.35 mm
Max. Bundle Diameter	Φ35 mm
Min. Tensile Strength (Metric)	222N
Min. Tensile Strength (Imperial)	50 Lbs (22.6 Kgf)
Mounting Type	Omega Pipe Clip Mount
Suitable Pipe Diameter	Φ31.0-39.0 mm
Material	Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability	UL 94-V2 (Foot Part: UL 94-HB)
Operating Temperature	-40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant	Yes
ROHS compliant	Yes
Manufacturer	HellermannTyton
Product Unit	Piece
Catalogue	HT_Automotive_Cat_2024_1_14_247-248_COM.pdfCatalogue
Drawing	CAD_06-0210-001-CSC.pdfDrawing
Datasheet	TDS_156-01345_com.pdfDatasheet
