156-01237 T50SVCOC9-11B

Name: 156-01237 T50SVCOC9-11B
SKU: 156-01237
Price: 0.41 USD
Availability: InStock

Cable Tie With Pipe Clip, 155mmx4.7mm(LxW), Attached To Φ9-11mm Pipe, Bundle Max. Φ35 mm, 222N Tensile Strength, PA66HIRHS/PA66HS, -40 °C to +105 °C, Black

Manufacturer: HellermannTyton

SKU: 156-01237

MPN: T50SVCOC9-11B-PA66HIRHS/PA66HS-BK

Product Family: Cable Tie With Omega Clip

Category: Pipe Clip Cable Tie

HT_Automotive_Products_113-113_COM.pdfCatalogue

CAD_13-1085-001-CSC.pdfDrawing

TDS_156-01237_com.pdfDatasheet

Unit Price: $0.4088

Availability: 5000 in stock

Price list

Quantity	Net Price /Piece
1000 +	$0.4088
1250 +	$0.3975
1750 +	$0.3804
3000 +	$0.3530
4000 +	$0.3383
5000 +	$0.3270

This product has a minimum quantity of 1000

Qty:

Total Price: $0.4088

Request a free, non-obligation quote today

Create your individual quote quickly and easily

Full Description

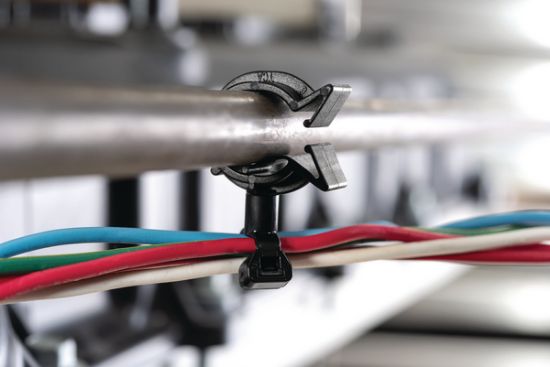

These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.

Products specifications

Attribute name	Attribute value
Country of Origin	CN
Product Family	Cable Tie With Omega Clip
Global Part Number	T50SVCOC9-11B-PA66HIRHS/PA66HS-BK
Product Base Type	T50SVCOC9-11B
Material Abbreviation	PA66HIRHS/PA66HS
Color	Black
Lead Time	5 Weeks
Cable Tie Style	2-Piece Fixing Tie
Tie Closure	Plastic Pawl
Variant	Inside Serrated
Cable Tie Length (Metric)	155 mm
Cable Tie Length (Imperial)	6.1 inch
Cable Tie Width (Metric)	4.7 mm
Cable Tie Width (Imperial)	0.19 inch
Tie Strap Thickness	1.35 mm
Max. Bundle Diameter	Φ35 mm
Min. Tensile Strength (Metric)	222N
Min. Tensile Strength (Imperial)	50 Lbs (22.6 Kgf)
Mounting Type	Omega Pipe Clip Mount
Suitable Pipe Diameter	Φ9.0-11.0 mm
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS), Polyamide 6.6, heat stabilised (PA66HS)
Flammability	UL 94-HB
Operating Temperature	-40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant	Yes
ROHS compliant	Yes
Manufacturer	HellermannTyton
Product Unit	Piece
Catalogue	HT_Automotive_Products_113-113_COM.pdfCatalogue
Drawing	CAD_13-1085-001-CSC.pdfDrawing
Datasheet	TDS_156-01237_com.pdfDatasheet
