156-00937 T50SVC6.5

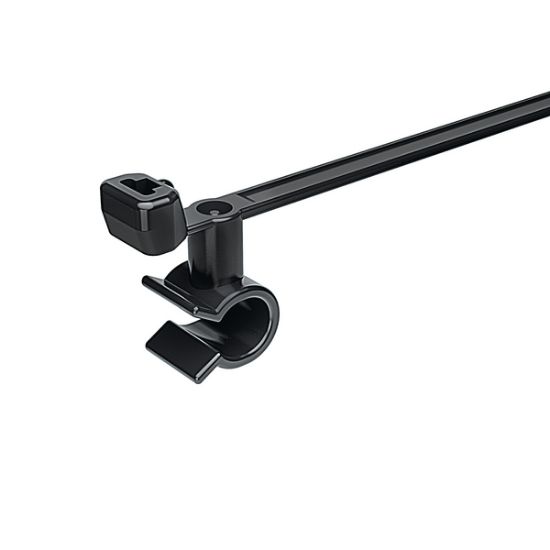

Cable Tie With Pipe Clip, 155mmx4.7mm(LxW), Attached To Φ6.5-8.0mm Pipe, Bundle Max. Φ35 mm, 222N Tensile Strength, PA46, -40 °C to +130 °C, Grey
Manufacturer: HellermannTyton
SKU: 156-00937
MPN: T50SVC6.5-PA46-GY
Product Family: Cable Tie With Omega Clip
Unit Price: $0.8395
Availability: 4000 in stock
Price list
Quantity Net Price /Piece
800 + $0.8395
1000 + $0.8162
1250 + $0.7929
1750 + $0.7578
2500 + $0.7206
3000 + $0.7016
4000 + $0.6716
This product has a minimum quantity of 800
Total Price: $0.8395
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.

Features

  • Simply clip on a wire or hose
  • Fixing clip offers full 360° rotation
  • Routed cable can move in any direction in relation to the fixing point
  • Ideally used in the Automotive Industry
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Cable Tie With Omega Clip
Global Part Number T50SVC6.5-PA46-GY
Product Base Type T50SVC6.5
Material Abbreviation PA46
Color Grey
Lead Time 5 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 155 mm
Cable Tie Length (Imperial) 6.1 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Max. Bundle Diameter Φ35 mm
Min. Tensile Strength (Metric) 222N
Min. Tensile Strength (Imperial) 50 Lbs (22.6 Kgf)
Mounting Type Omega Pipe Clip Mount
Suitable Pipe Diameter Φ6.5-8.0 mm
Material Polyamide 4.6 (PA46)
Flammability UL 94-V2
Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 156-00937 T50SVC6.5-PA46-GY Drawing PDFCAD_02-0312-001-CSC.pdfDrawing

Datasheet

HellermannTyton 156-00937 T50SVC6.5-PA46-GY Datasheet PDFTDS_156-00937_com.pdfDatasheet
