156-00131 T50SMVCOC39-45

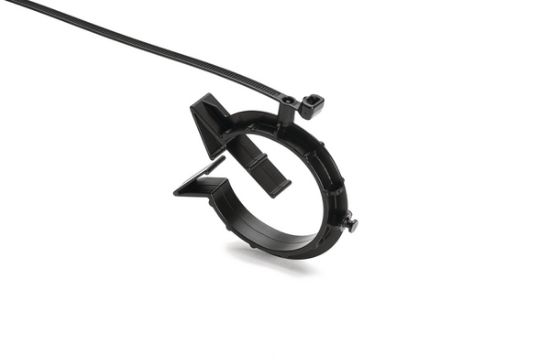

Cable Tie With Pipe Clip, 210mmx4.7mm(LxW), Attached To Φ39-45mm Pipe, Bundle Max. Φ50 mm, 222N Tensile Strength, PA66HS/PA66HIRHS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 156-00131
MPN: T50SMVCOC39-45-PA66HS/PA66HIRHS-BK
Product Family: Cable Tie With Omega Clip
Unit Price: $0.9687
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
250 + $0.9687
400 + $0.9315
500 + $0.9138
750 + $0.8817
1250 + $0.8412
2000 + $0.8040
This product has a minimum quantity of 250
Total Price: $0.9687
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness.

Features

  • simply clip onto a wire or hose
  • Fixing clip offers full 360° rotation
  • Routed cable can move in any direction in relation to the fixing point
  • outside serrated cable tie
  • Ideally used in the Automotive Industry
Products specifications
Attribute name Attribute value
Country of Origin FR
Product Family Cable Tie With Omega Clip
Global Part Number T50SMVCOC39-45-PA66HS/PA66HIRHS-BK
Product Base Type T50SMVCOC39-45
Material Abbreviation PA66HS/PA66HIRHS
Color Black
Lead Time 16 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 210 mm
Cable Tie Length (Imperial) 8.3 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Tie Strap Thickness 1.35 mm
Max. Bundle Diameter Φ50 mm
Min. Tensile Strength (Metric) 222N
Min. Tensile Strength (Imperial) 50 Lbs (22.6 Kgf)
Mounting Type Omega Pipe Clip Mount
Suitable Pipe Diameter Φ39.0-45.0 mm
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability UL 94-V2 (Foot Part: UL 94-HB)
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 156-00131 T50SMVCOC39-45-PA66HS/PA66HIRHS-BK Catalogue PageHT_Automotive_Cat_2024_1_14_247-248_COM.pdfCatalogue

Drawing

HellermannTyton 156-00131 T50SMVCOC39-45-PA66HS/PA66HIRHS-BK Drawing PDFCAD_141892.pdfDrawing

Datasheet

HellermannTyton 156-00131 T50SMVCOC39-45-PA66HS/PA66HIRHS-BK Datasheet PDFTDS_156-00131_com.pdfDatasheet
