156-00129 T50SMVCOC15-18

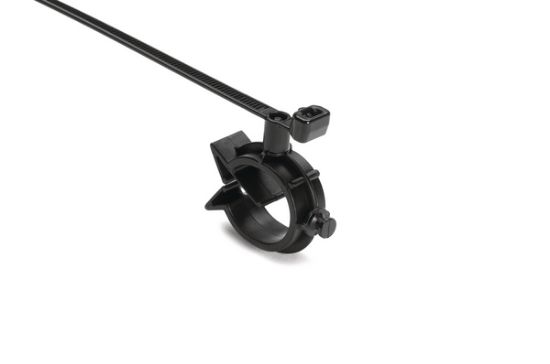

Cable Tie With Pipe Clip, 210mmx4.7mm(LxW), Attached To Φ15-18mm Pipe, Bundle Max. Φ50 mm, 222N Tensile Strength, PA66HS/PA66HIRHS, -40 °C to +105 °C, Black
Manufacturer: HellermannTyton
SKU: 156-00129
MPN: T50SMVCOC15-18-PA66HS/PA66HIRHS-BK
Product Family: Cable Tie With Omega Clip
Unit Price: $0.4694
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
1000 + $0.4694
1250 + $0.4580
1750 + $0.4407
2500 + $0.4224
3000 + $0.4131
This product has a minimum quantity of 1000
Total Price: $0.4694
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

HellermannTyton’s 1-Piece Cable Tie with Pipe Clip secures cables to tubular frame rails. The cable tie bundles wires, cables or tubes, and the C-clip snaps onto the tubular frame rail. The clip can be removed from the mounting surface and reinstalled without additional fasteners.

Features

  • Simply clip on a wire or hose
  • Fixing clip offers full 360° rotation
  • Routed cable can move in any direction in relation to the fixing point
  • Inside serrated cable tie
  • Ideally used in the automotive industry
Products specifications
Attribute name Attribute value
Country of Origin FR
Product Family Cable Tie With Omega Clip
Global Part Number T50SMVCOC15-18-PA66HS/PA66HIRHS-BK
Product Base Type T50SMVCOC15-18
Material Abbreviation PA66HS/PA66HIRHS
Color Black
Lead Time 16 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 210 mm
Cable Tie Length (Imperial) 8.3 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Tie Strap Thickness 1.35 mm
Max. Bundle Diameter Φ50 mm
Min. Tensile Strength (Metric) 222N
Min. Tensile Strength (Imperial) 50 Lbs (22.6 Kgf)
Mounting Type Omega Pipe Clip Mount
Suitable Pipe Diameter Φ15.0-18.0 mm
Material Polyamide 6.6, heat stabilised (PA66HS), Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
Flammability UL 94-V2 (Foot Part: UL 94-HB)
Operating Temperature -40 °C to +105 °C, (+145 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 156-00129 T50SMVCOC15-18-PA66HS/PA66HIRHS-BK Catalogue PageHT_Automotive_Cat_2024_1_14_247-248_COM.pdfCatalogue

Drawing

HellermannTyton 156-00129 T50SMVCOC15-18-PA66HS/PA66HIRHS-BK Drawing PDFCAD_05-0045-004-CSH.pdfDrawing

Datasheet

HellermannTyton 156-00129 T50SMVCOC15-18-PA66HS/PA66HIRHS-BK Datasheet PDFTDS_156-00129_com.pdfDatasheet
