150-21297 T80ISBS5

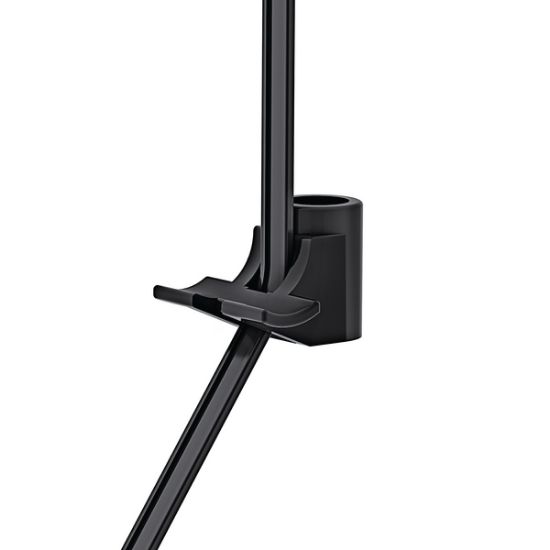

Cable Tie With Stud Mount, 305mmx4.7mm(LxW), M5, Bundle Max. Φ80 mm, 355N Tensile Strength, PA66, -40 °C to +85 °C, Black
Manufacturer: HellermannTyton
Unit Price: $0.3765
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
500 + $0.3765
750 + $0.3642
1250 + $0.3487
1750 + $0.3385
2500 + $0.3277
4000 + $0.3135
6000 + $0.3012
This product has a minimum quantity of 500
Total Price: $0.3765
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

Primarily designed for use in the automotive industry, these parts can be used in a wide variety of applications where 5mm weld studs or 5mm ISO bolts are used and cables need to be bundled and secured

Features

  • Pre-assembled with cable tie and weld stud mounting base
  • Quick and easy installation
  • Head rotates into perfect position for installation
  • 'Soft-push' design for tool-free installation
  • Mushroom-shaped SBH handles insulation or a sound-deadening blanket
  • SBS ideal for installation prior to attaching cable (i.e. no lateral tolerances required)
  • SB5 allow lateral tolerance for fixing point
Products specifications
Attribute name Attribute value
Country of Origin SG
Product Family Stud Mount Cable Tie
Global Part Number T80ISBS5-PA66-BK
Product Base Type T80ISBS5
Material Abbreviation PA66
Color Black
Lead Time 16 Weeks
Cable Tie Style 2-Piece Fixing Tie
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 305 mm
Cable Tie Length (Imperial) 12.0 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Tie Strap Thickness 1.3 mm
Max. Bundle Diameter Φ80 mm
Min. Tensile Strength (Metric) 355N
Min. Tensile Strength (Imperial) 80 Lbs (36.2 Kgf)
Mounting Type Weld Stud Mount
Fitting Stud Diameter M5
Material Polyamide 6.6 (PA66)
Flammability UL 94-V2
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 150-21297 T80ISBS5-PA66-BK Catalogue PageHT_Automotive_Cat_2024_1_11_209-209_COM.pdfCatalogue

Drawing

HellermannTyton 150-21297 T80ISBS5-PA66-BK Drawing PDFCAD_95-0212-010-CSH.pdfDrawing

Datasheet

HellermannTyton 150-21297 T80ISBS5-PA66-BK Datasheet PDFTDS_150-21297_com.pdfDatasheet
