111-95019 T50R

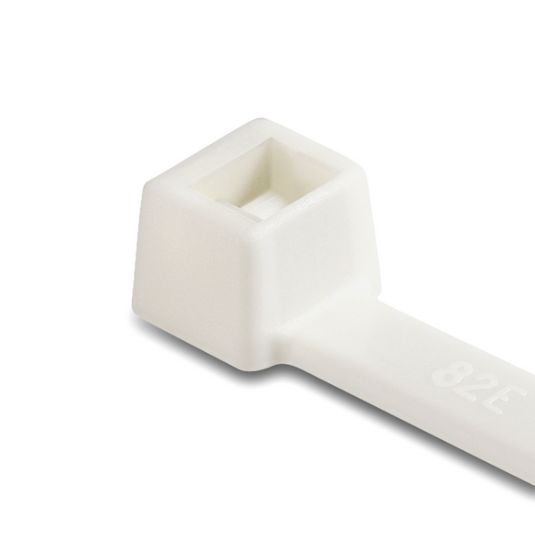

Flame Retardant Cable Tie(Self-Extinguishing), 200mmx4.6mm(LxW), Bundle Max. Φ50 mm, 225N Tensile Strength, PA66V0, -40 °C to +85 °C, White
Manufacturer: HellermannTyton
SKU: 111-95019
MPN: T50R-PA66V0-WH
Product Family: Standard Cable Tie (UL 94-V0)
Category: Standard Cable Tie
Unit Price: $0.1548
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
1750 + $0.1548
2500 + $0.1503
4000 + $0.1443
6000 + $0.1392
9000 + $0.1341
14000 + $0.1285
This product has a minimum quantity of 1750
Total Price: $0.1548
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.

Features

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Products specifications
Attribute name Attribute value
Country of Origin GB
Product Family Standard Cable Tie (UL 94-V0)
Global Part Number T50R-PA66V0-WH
Product Base Type T50R
Material Abbreviation PA66V0
Color White
Lead Time 16 Weeks
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 200 mm
Cable Tie Length (Imperial) 7.9 inch
Cable Tie Width (Metric) 4.6 mm
Cable Tie Width (Imperial) 0.18 inch
Tie Strap Thickness 1.2 mm
Max. Bundle Diameter Φ50 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Material Polyamide 6.6 V0 (PA66V0)
Flammability UL 94-V0
EN 45545-2 Classification R22 HL2, R23 HL3
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications EN 45545-2, IEC 60092 series
ELV compliant Yes
ROHS compliant Yes
Halogen-free Yes
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 111-95019 T50R-PA66V0-WH Catalogue PageHT_Product_Cat_2022_1_1_047-047_COM.pdfCatalogue

Drawing

HellermannTyton 111-95019 T50R-PA66V0-WH Drawing PDFCAD_12-0123-001-CSH.pdfDrawing

Datasheet

HellermannTyton 111-95019 T50R-PA66V0-WH Datasheet PDFTDS_111-95019_com.pdfDatasheet
