111-00905 T120R

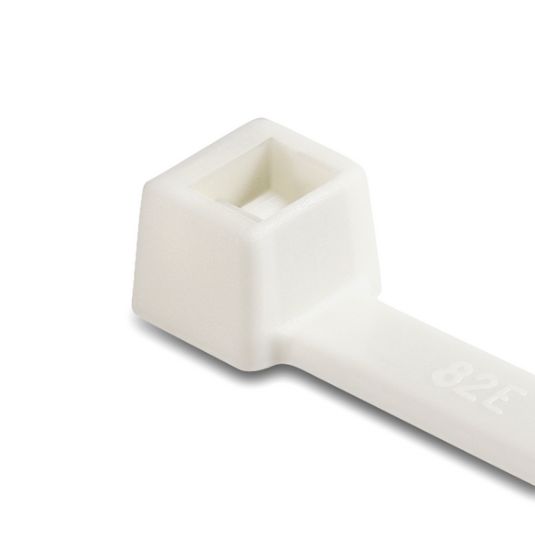

Flame Retardant Cable Tie(Self-Extinguishing), 387mmx7.6mm(LxW), Bundle Max. Φ105 mm, 535N Tensile Strength, PA66V0, -40 °C to +85 °C, White
Manufacturer: HellermannTyton
SKU: 111-00905
MPN: T120R-PA66V0-WH
Product Family: Standard Cable Tie (UL 94-V0)
Category: Standard Cable Tie
Unit Price: $0.7490
Availability: 6000 in stock
Price list
Quantity Net Price /Piece
350 + $0.7490
500 + $0.7183
750 + $0.6835
1000 + $0.6588
1250 + $0.6396
1500 + $0.6239
2000 + $0.5992
This product has a minimum quantity of 350
Total Price: $0.7490
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.

Features

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Standard Cable Tie (UL 94-V0)
Global Part Number T120R-PA66V0-WH
Product Base Type T120R
Material Abbreviation PA66V0
Color White
Lead Time 5 Weeks
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 387 mm
Cable Tie Length (Imperial) 15.2 inch
Cable Tie Width (Metric) 7.6 mm
Cable Tie Width (Imperial) 0.30 inch
Tie Strap Thickness 1.9 mm
Max. Bundle Diameter Φ105 mm
Min. Tensile Strength (Metric) 535N
Min. Tensile Strength (Imperial) 120 Lbs (54.6 Kgf)
Material Polyamide 6.6 V0 (PA66V0)
Flammability UL 94-V0
EN 45545-2 Classification R22 HL2, R23 HL3
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications UL-ZODZ2.E193818, EN45545-2
ELV compliant Yes
ROHS compliant Yes
UL-File Number E193818
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 111-00905 T120R-PA66V0-WH Drawing PDFCAD_11-0589-001-CSC.pdfDrawing

Datasheet

HellermannTyton 111-00905 T120R-PA66V0-WH Datasheet PDFTDS_111-00905_com.pdfDatasheet
