111-00554 T30R

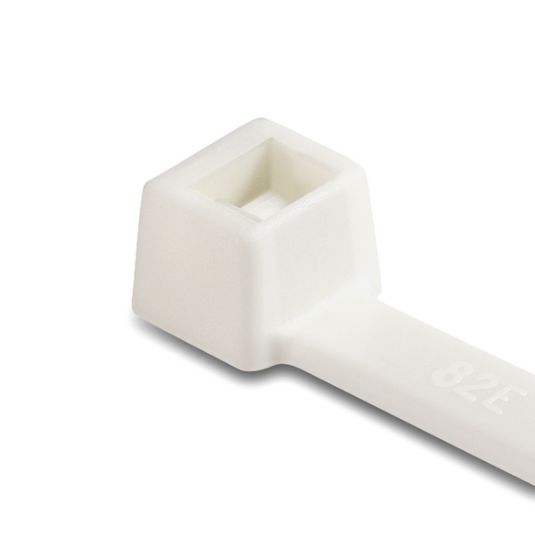

Flame Retardant Cable Tie(Self-Extinguishing), 150mmx3.5mm(LxW), Bundle Max. Φ35 mm, 135N Tensile Strength, PA66V0, -40 °C to +85 °C, White
Manufacturer: HellermannTyton
SKU: 111-00554
MPN: T30R-PA66V0-WH
Product Family: Standard Cable Tie (UL 94-V0)
Category: Standard Cable Tie
Unit Price: $0.0700
Availability: 12500 in stock
Price list
Quantity Net Price /Piece
4500 + $0.0700
6000 + $0.0683
9000 + $0.0660
15000 + $0.0631
20000 + $0.0614
28000 + $0.0595
This product has a minimum quantity of 4500
Total Price: $0.0700
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

T-Series cable ties for bundling and securing cables, pipes and hoses. These cable ties can be used for almost any type of application especially where safety regulations are high and the reduction of smoke and dangerous gases is required. PA66V0 products are most critically used within public sector areas – particularly in the rail, construction and defense industry.

Features

  • White cable tie for higher fire-protection
  • Conform to low smoke generation requirements (UL94 V0)
  • Low evolution of toxic gases and corrosive acids in event of a fire
  • PA66V0 cable ties are available in different sizes
  • High safety rating due to low fire hazard
Products specifications
Attribute name Attribute value
Country of Origin CN
Product Family Standard Cable Tie (UL 94-V0)
Global Part Number T30R-PA66V0-WH
Product Base Type T30R
Material Abbreviation PA66V0
Color White
Lead Time 5 Weeks
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 150 mm
Cable Tie Length (Imperial) 5.9 inch
Cable Tie Width (Metric) 3.5 mm
Cable Tie Width (Imperial) 0.14 inch
Tie Strap Thickness 1.1 mm
Max. Bundle Diameter Φ35 mm
Min. Tensile Strength (Metric) 135N
Min. Tensile Strength (Imperial) 30 Lbs (13.8 Kgf)
Material Polyamide 6.6 V0 (PA66V0)
Flammability UL 94-V0
EN 45545-2 Classification R22 HL2, R23 HL3
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications UL-ZODZ2.E193818, EN45545-2
ELV compliant Yes
ROHS compliant Yes
UL-File Number E193818
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 111-00554 T30R-PA66V0-WH Catalogue PageHT_Product_Cat_2022_1_1_047-047_COM.pdfCatalogue

Drawing

HellermannTyton 111-00554 T30R-PA66V0-WH Drawing PDFCAD_10-0031-001-CSC.pdfDrawing

Datasheet

HellermannTyton 111-00554 T30R-PA66V0-WH Datasheet PDFTDS_111-00554_com.pdfDatasheet
