111-05438 T50L

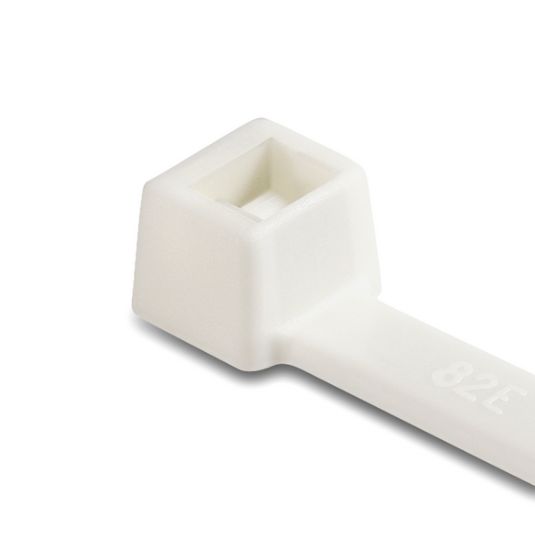

Flame Retardant Cable Tie(Self-Extinguishing), 390mmx4.7mm(LxW), Bundle Max. Φ110 mm, 225N Tensile Strength, PA66V0, -40 °C to +85 °C, White
Manufacturer: HellermannTyton
SKU: 111-05438
MPN: T50L-PA66V0-WH
Product Family: Standard Cable Tie (UL 94-V0)
Category: Standard Cable Tie
Unit Price: $0.2367
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
1500 + $0.2367
2000 + $0.2282
2500 + $0.2216
3000 + $0.2163
4000 + $0.2078
5000 + $0.2012
This product has a minimum quantity of 1500
Total Price: $0.2367
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

T-Series cable ties for bundling and securing of cables, pipes and hoses. These cable ties can be used for nearly all kind of applications.

Features

  • Available in a wide range of materials and sizes
  • High tensile strength with very low insertion force
  • Only high quality plastic is used meeting recycling targets
  • Inside serrated cable ties for a strong hold onto bundles
  • Ergonomic bent tail offers quick and simple installation
  • Easy application either manually or with an application tool
Products specifications
Attribute name Attribute value
Country of Origin GB
Product Family Standard Cable Tie (UL 94-V0)
Global Part Number T50L-PA66V0-WH
Product Base Type T50L
Material Abbreviation PA66V0
Color White
Lead Time 16 Weeks
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 390 mm
Cable Tie Length (Imperial) 15.4 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Tie Strap Thickness 1.4 mm
Max. Bundle Diameter Φ110 mm
Min. Tensile Strength (Metric) 225N
Min. Tensile Strength (Imperial) 50 Lbs (22.9 Kgf)
Material Polyamide 6.6 V0 (PA66V0)
Flammability UL 94-V0
EN 45545-2 Classification R22 HL2, R23 HL3
Operating Temperature -40 °C to +85 °C, (+105 °C, 500 h)
Specifications ANSI/UL 62275, EN 45545-2
ELV compliant Yes
ROHS compliant Yes
UL-File Number E64963
Manufacturer HellermannTyton
Product Unit Piece
Catalogue

HellermannTyton 111-05438 T50L-PA66V0-WH Catalogue PageHT_Product_Cat_2022_1_1_047-047_COM.pdfCatalogue

Drawing

HellermannTyton 111-05438 T50L-PA66V0-WH Drawing PDFCAD_11-0485-001-CSC.pdfDrawing

Datasheet

HellermannTyton 111-05438 T50L-PA66V0-WH Datasheet PDFTDS_111-05438_com.pdfDatasheet
