111-02206 T80I

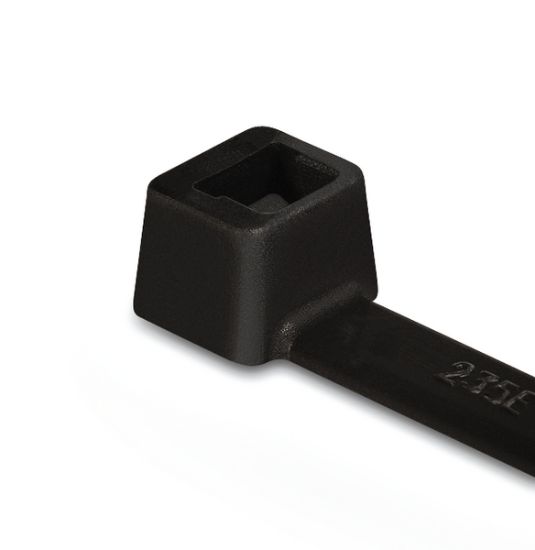

High Temperature Cable Tie, 300mmx4.7mm(LxW), Bundle Max. Φ85 mm, 355N Tensile Strength, PA46, -40 °C to +130 °C, Black
Manufacturer: HellermannTyton
SKU: 111-02206
MPN: T80I-PA46-BK
Product Family: PA46 Standard Cable Tie
Unit Price: $0.4494
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
1000 + $0.4494
1250 + $0.4369
1750 + $0.4181
3000 + $0.3880
4000 + $0.3720
5000 + $0.3595
This product has a minimum quantity of 1000
Total Price: $0.4494
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

These inside serrated cable ties are made from Polyamide 4.6 (PA46). They can be applied in environments with continuous temperatures up to +195 °C (for 500 hours) which makes them suitable for applications where a broader temperature range is required. Polyamide 4.6 is a well-known material in the automotive, railway or white goods area. An application tool is recommended to ensure greater process reliability while installing cable ties.

Features

  • Cable tie for high temperature applications up to +150 °C (5000 h) and +195 °C (500 h)
  • Available in different sizes to cover various bundle diameters
  • Low smoke generation in the event of a fire
  • PA46 is a moisture sensitive material
  • Inside serrated cable tie offers strong hold around bundles
  • Easy application either manually or with an application tool
  • Operating temperature (long-term) up to +130 °C
Products specifications
Attribute name Attribute value
Country of Origin BR
Product Family PA46 Standard Cable Tie
Global Part Number T80I-PA46-BK
Product Base Type T80I
Material Abbreviation PA46
Color Black
Lead Time 16 Weeks
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 300 mm
Cable Tie Length (Imperial) 11.8 inch
Cable Tie Width (Metric) 4.7 mm
Cable Tie Width (Imperial) 0.19 inch
Tie Strap Thickness 1.3 mm
Max. Bundle Diameter Φ85 mm
Min. Tensile Strength (Metric) 355N
Min. Tensile Strength (Imperial) 80 Lbs (36.2 Kgf)
Material Polyamide 4.6 (PA46)
Flammability UL 94-V2
Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Halogen-free Yes
Manufacturer HellermannTyton
Product Unit Piece
Datasheet

HellermannTyton 111-02206 T80I-PA46-BK Datasheet PDFTDS_111-02206_com.pdfDatasheet
