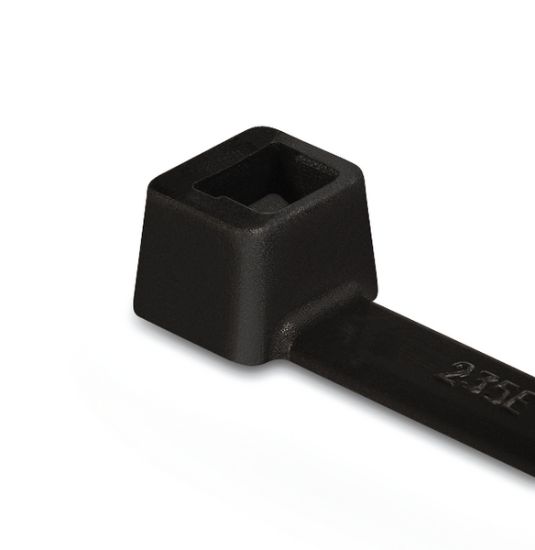

111-01041 T30R

High Temperature Cable Tie, 150mmx3.5mm(LxW), Bundle Max. Φ35 mm, 135N Tensile Strength, PA46, -40 °C to +130 °C, Black
Manufacturer: HellermannTyton
SKU: 111-01041
MPN: T30R-PA46-BK
Product Family: PA46 Standard Cable Tie
Unit Price: $0.0999
Availability: Out of Stock - on backorder and will be dispatched once in stock.
Price list
Quantity Net Price /Piece
5000 + $0.0999
6000 + $0.0978
8000 + $0.0944
10000 + $0.0918
14000 + $0.0879
This product has a minimum quantity of 5000
Total Price: $0.0999
Request a free, non-obligation quote today
Create your individual quote quickly and easily
Full Description

These inside serrated cable ties are made from Polyamide 4.6 (PA46). They can be applied in environments with temperatures up to +195 °C (for 500 hours) which makes them suitable for applications where a broader temperature range is required. Polyamide 4.6 is a well-known material in the automotive, railway or white goods area. An application tool is recommended to ensure greater process reliability while installing cable ties.

Features

  • Cable tie for high temperature applications up to +150 °C (5000 h) and +195 °C (500 h)
  • Available in different sizes to cover various bundle diameters
  • Low smoke generation in the event of a fire
  • PA46 is a moisture sensitive material
  • Inside serrated cable tie offers strong hold around bundles
  • Easy application either manually or with an application tool
  • Operating temperature (long-term) up to +130 °C
Products specifications
Attribute name Attribute value
Country of Origin BR
Product Family PA46 Standard Cable Tie
Global Part Number T30R-PA46-BK
Product Base Type T30R
Material Abbreviation PA46
Color Black
Lead Time 16 Weeks
Tie Closure Plastic Pawl
Variant Inside Serrated
Cable Tie Length (Metric) 150 mm
Cable Tie Length (Imperial) 5.9 inch
Cable Tie Width (Metric) 3.5 mm
Cable Tie Width (Imperial) 0.14 inch
Tie Strap Thickness 1.1 mm
Max. Bundle Diameter Φ35 mm
Min. Tensile Strength (Metric) 135N
Min. Tensile Strength (Imperial) 30 Lbs (13.8 Kgf)
Material Polyamide 4.6 (PA46)
Flammability UL 94-V2
Operating Temperature -40 °C to +130 °C, (+150 °C, 5000 h; +195 °C, 500 h)
ELV compliant Yes
ROHS compliant Yes
Manufacturer HellermannTyton
Product Unit Piece
Drawing

HellermannTyton 111-01041 T30R-PA46-BK Drawing PDFCAD_10-0031-001-CSC.pdfDrawing

Datasheet

HellermannTyton 111-01041 T30R-PA46-BK Datasheet PDFTDS_111-01041_com.pdfDatasheet
